Fujitsu M10-4 - Installing an XSCF BB Control Cable

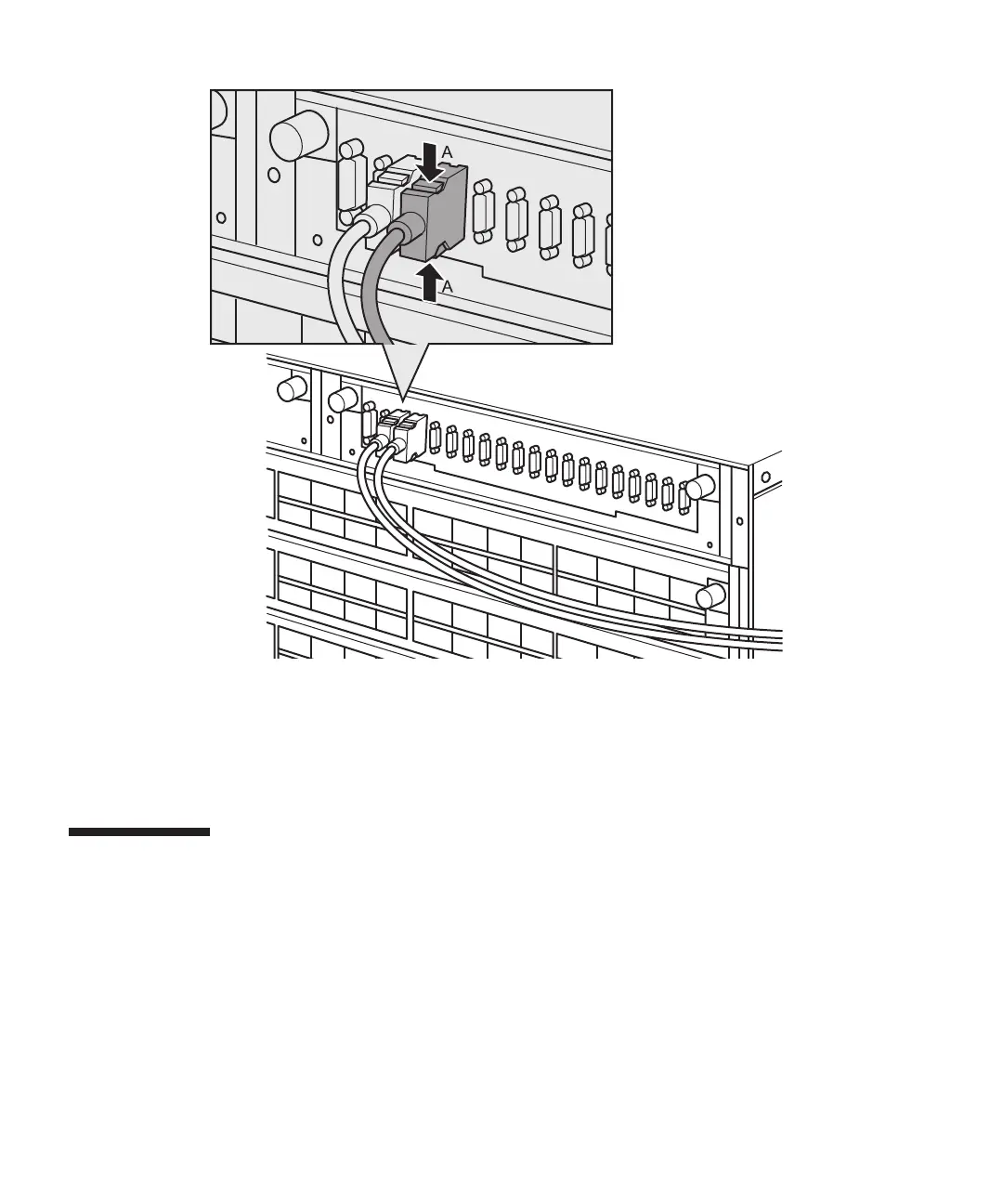

Figure 16-4
Removing the XSCF BB control cables (crossbar box)
2.
Remove the XSCF BB control cables from the other chassis.
Pull out an XSCF BB control cable while pushing the lock release buttons (A in
the figure) on the both sides of the cable.
16.3 Installing an XSCF BB Control Cable
This section describes the procedure for installing the XSCF BB control cables.
1.
Attach the supplied connection destination label to the new replacement
XSCF BB control cable.
For the new XSCF BB control cable, use the same type of label as the one on the
cable requiring maintenance and write the same
port number on it.
2.
Connect the XSCF BB control cable to SPARC M10-4S or the crossbar box.
