Fujitsu M10-4 - Fixing the Cable Support (if It Is a New Model)

Note -
Check that the cable support is firmly attached and fixed.

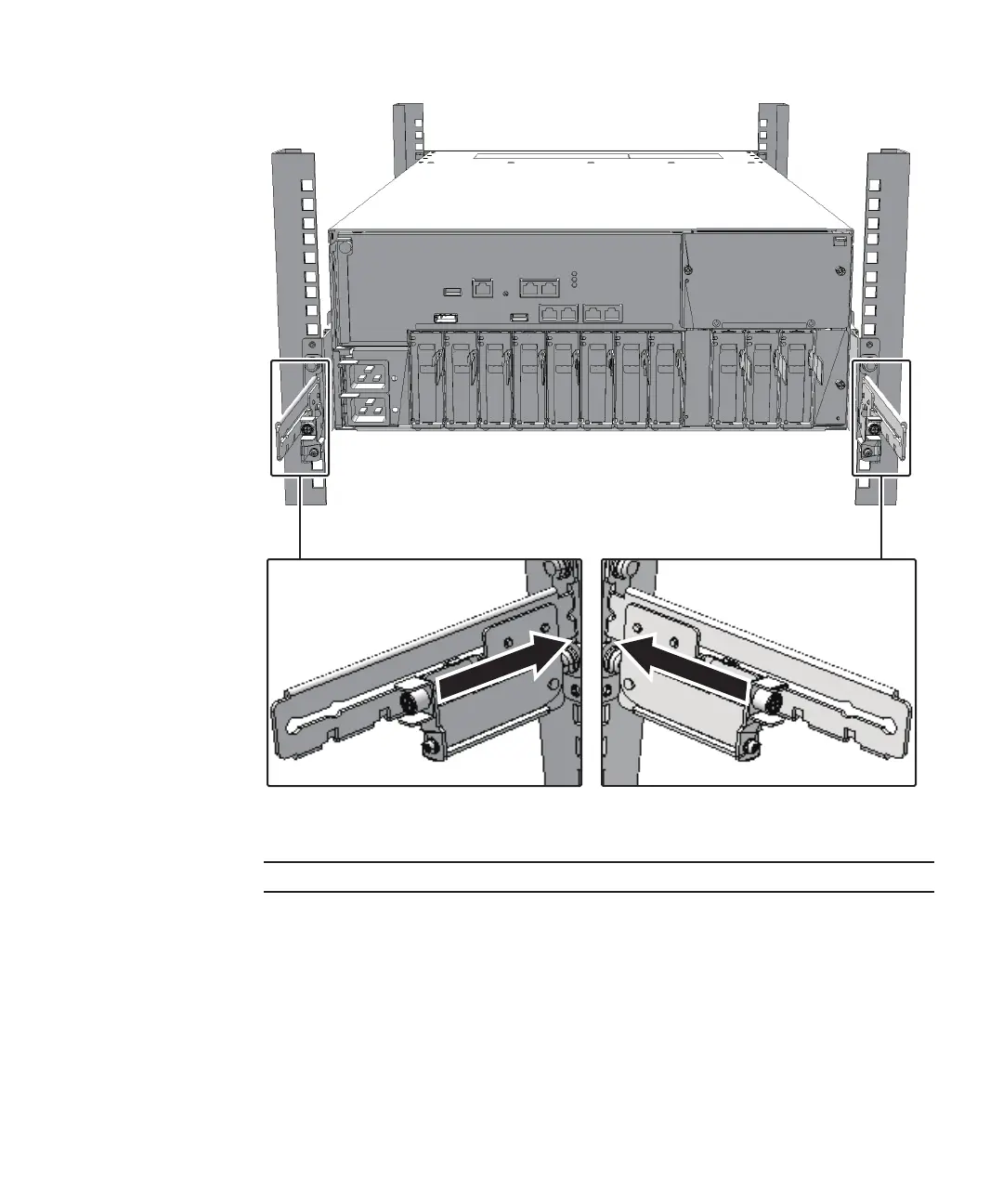

Figure 6-3
Locking the cable support
2.
Tighten the right and left screws to fix the cable support in place.
6.1.3 Fixing the cable support (if it is a new model)
After performing maintenance on a component at the rear of the SPARC M10-4/M10-
4S, lift the cable support and fix it in place.
1.
Lift the cable support and fasten the hooks (B in Figure 6-4) on the screws (C
in Figure 6-4).
Chapter 6 Restoring the System 89
