Fujitsu M10-4 - Removing a Crossbar Unit

㩿㪈㪀
㩿㪉㪀
Location number Component
1 Crossbar unit (XBU#0)
2 Crossbar unit (XBU#1)
Caution -
Before you handle any components, wear a wrist strap to ground any static
electricity. If you perform this procedure without a wrist strap, individual
components or the overall system may be damaged. For details, see "1.5 Notes
Regarding Static Electricity."

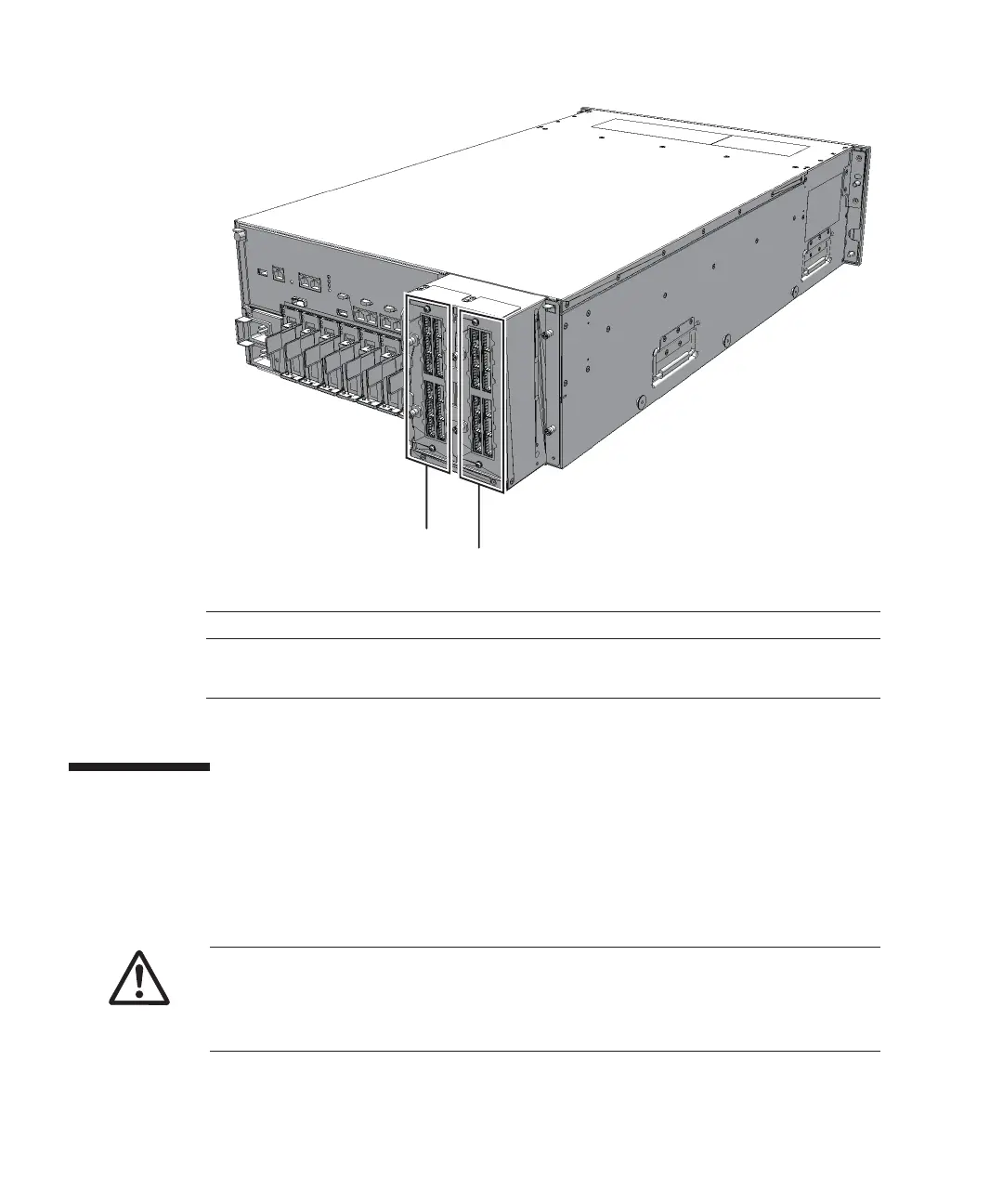

Figure 15-1
Location of crossbar units
15.2 Removing a Crossbar Unit
This section describes the procedure for removing a crossbar unit. Enable the
removal of the crossbar unit before attempting to remove it. For details, follow the
procedure in "Chapter 7 Maintenance Flow."
1.
If the crossbar cables are fixed to the cable support with the hook-and-loop
fastener, remove the hook-and-loop
fastener.
