Fujitsu M10-4 - Wire Connection Chart for Serial Cable; USB Port

Table D-1
Serial port (continued)
Pin arrangement Pin
number
Signal
name
Input/Output Description
6 RXD Input Received data
7 DSR Input Data set ready
8 CTS Input Transmission possible
Table D-2
USB port
Pin arrangement Pin
number
Signal
name
Input/Output Description
1 VBUS Output Power supply
2 -DATA Input/
Output
Data
3 +DATA Input/
Output
Data
4 GND --- Ground

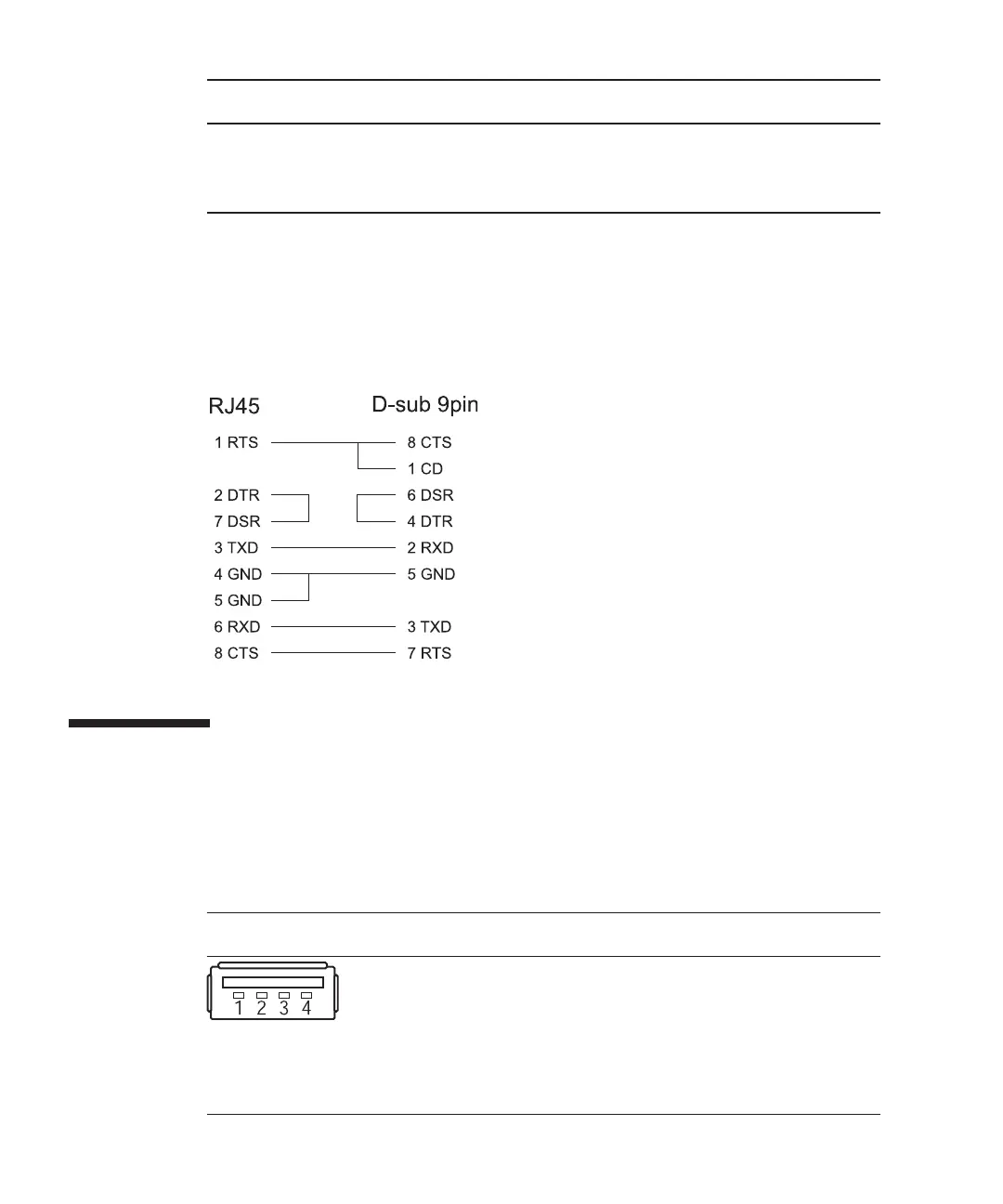

D.1.1 Wire connection chart for serial cable
Figure D-1
Wire connection chart of serial cable
D.2 USB Port
Table D-2 lists the specifications of the USB port of the SPARC M10-4/M10-4S and the
crossbar box.
