Fujitsu M10-4 - Control Function of the Operation Panel

㩿㪈㪀
㩿㪉㪀
㩿㪊㪀
Location number Component
1 POWER LED
2 XSCF STANDBY LED
3 CHECK LED
㩿㪈㪀
㩿㪉㪀 㩿㪊㪀
Location number Component
1 BB-ID switch (SPARC M10-4S only)
2Mode switch

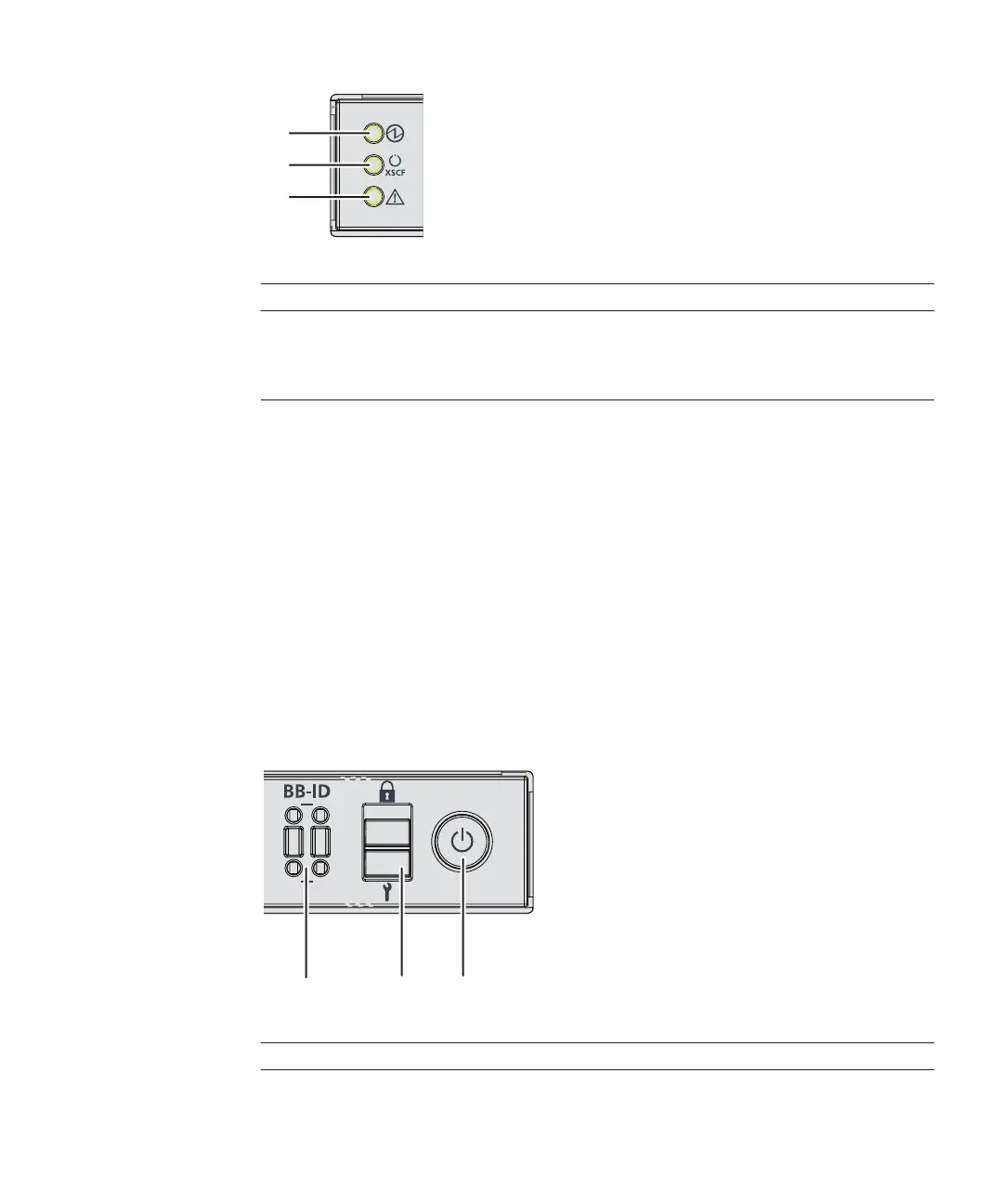

Figure 2-9
Operation panel LEDs
2.3.2 Control function of the operation panel
The operation panel has the following switches to implement its control function:
■
BB-ID switch
Identifies the SPARC M10-4S.
■
Mode switch (slide switch)
Specifies the operation mode.
■
Power switch
Controls start/stop of the system.
Figure 2-10
Operation panel switches
Chapter 2 Understanding the System Components 21
