Fujitsu M10-4 - Maintenance Flow

(1) (6)
(2)
(5)
(3)
(4)
(7)
(8)
Location number Component
1 Internal disk (HDD#0)
2 Internal disk (HDD#1)
3 Internal disk (HDD#2)
4 Internal disk (HDD#3)
5 Internal disk (HDD#4)
6 Internal disk (HDD#5)
7 Internal disk (HDD#6)
8 Internal disk (HDD#7)

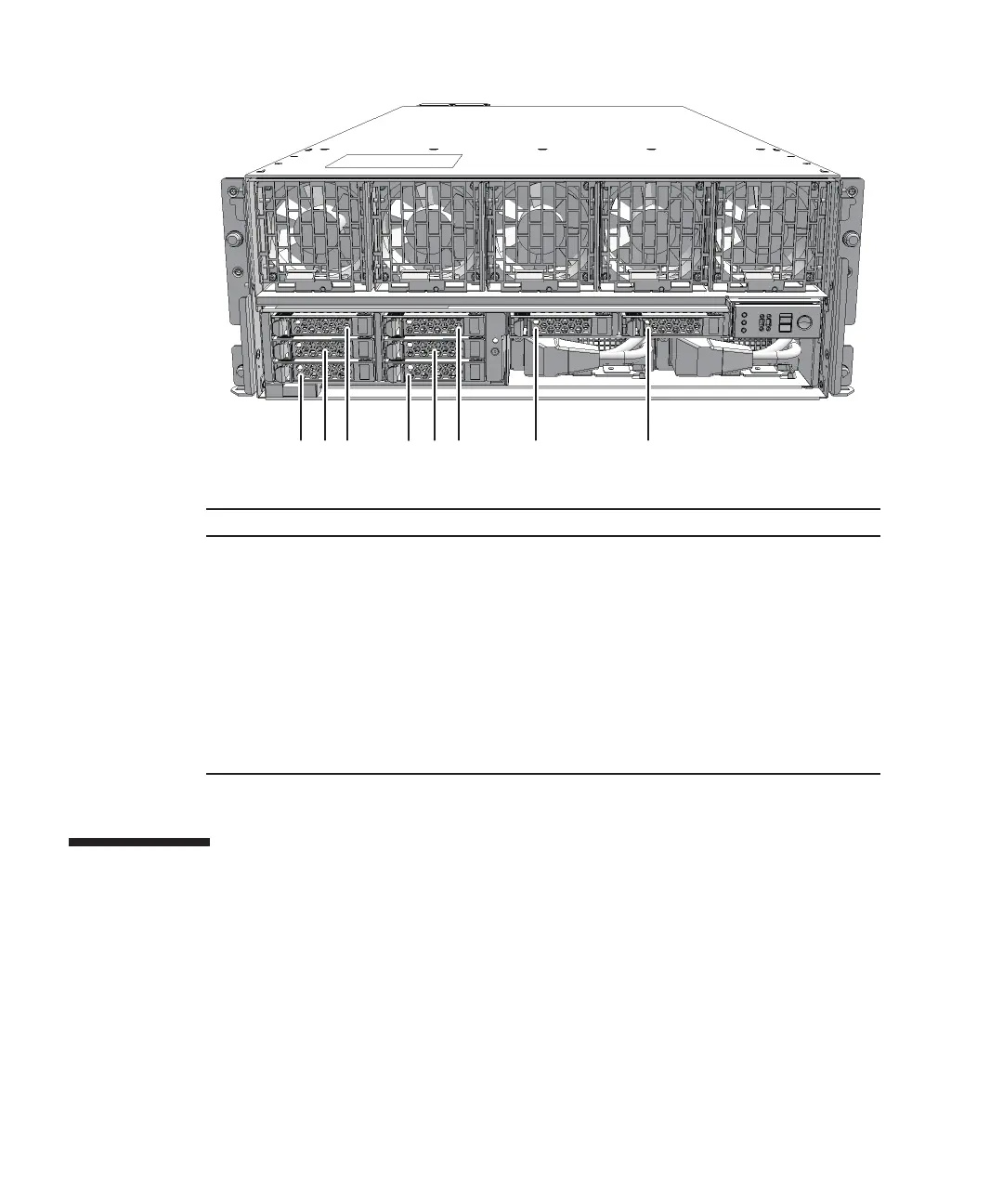

Figure 10-1
Location of internal disks
10.2 Maintenance Flow
Perform maintenance work on internal disks by following the procedures shown in
Figure 10-2, Table 10-1, Table 10-2, and Table 10-3.
