A
b. Remove the hook-and-loop fastener (A in the figure) of the cable support,
securing the crossbar cables.

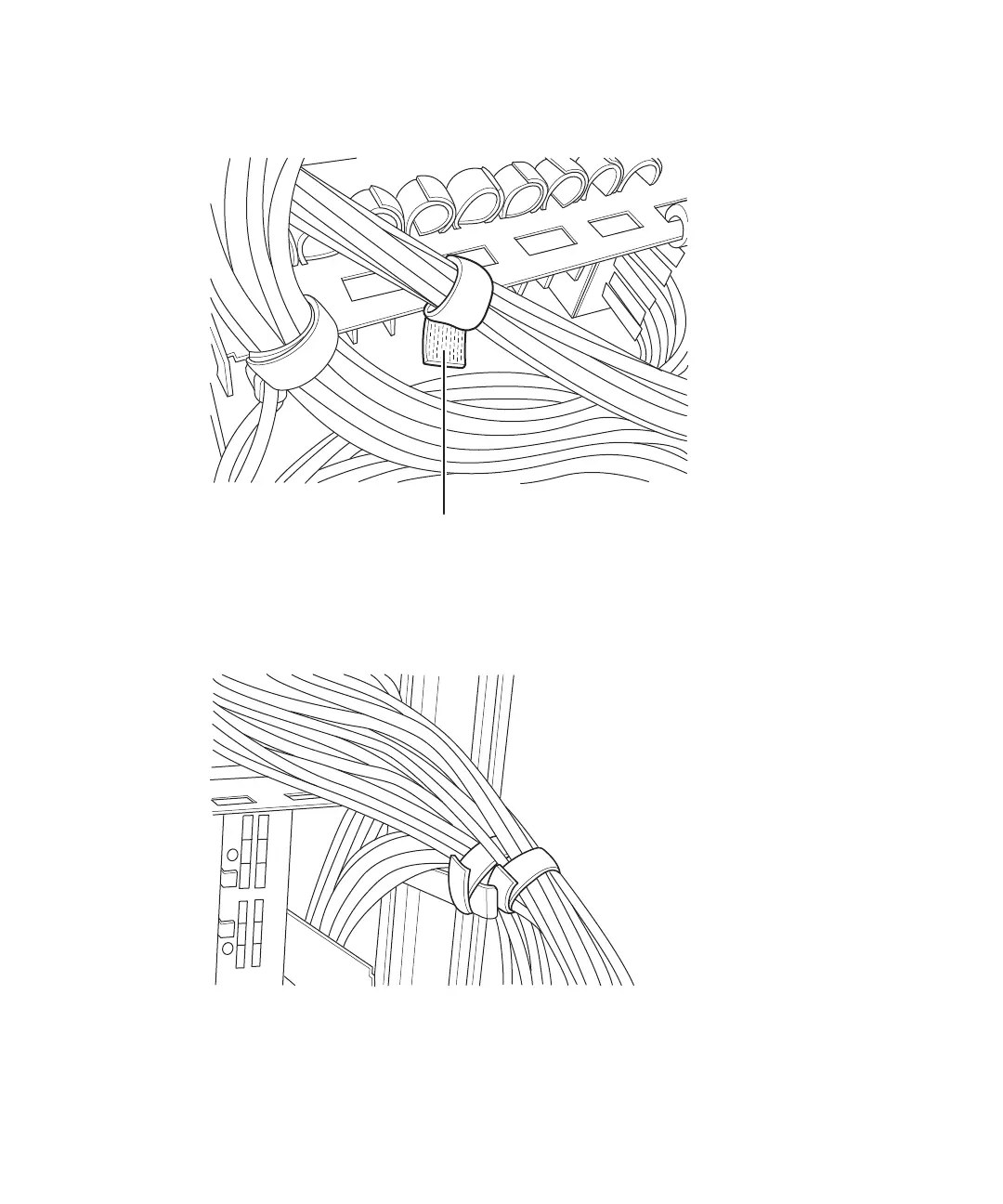

Figure 5-4
Hook-and-loop fastener of the cable support
c. Use the hook-and-loop fastener to fix the crossbar cables in place to the cable
holder installed on the supporting column at the rear of the rack.
Figure 5-5
Fixing crossbar cables
5.9.2 Lowering the cable support
To perform maintenance on the following FRUs from the rear of the chassis, lower
