A
Note -
Record the positions of the cables before removing them to ensure that they are
reinstalled correctly.
the supporting column at the rear of the rack. Then, install the cable holder by
rotating it 180 degrees.

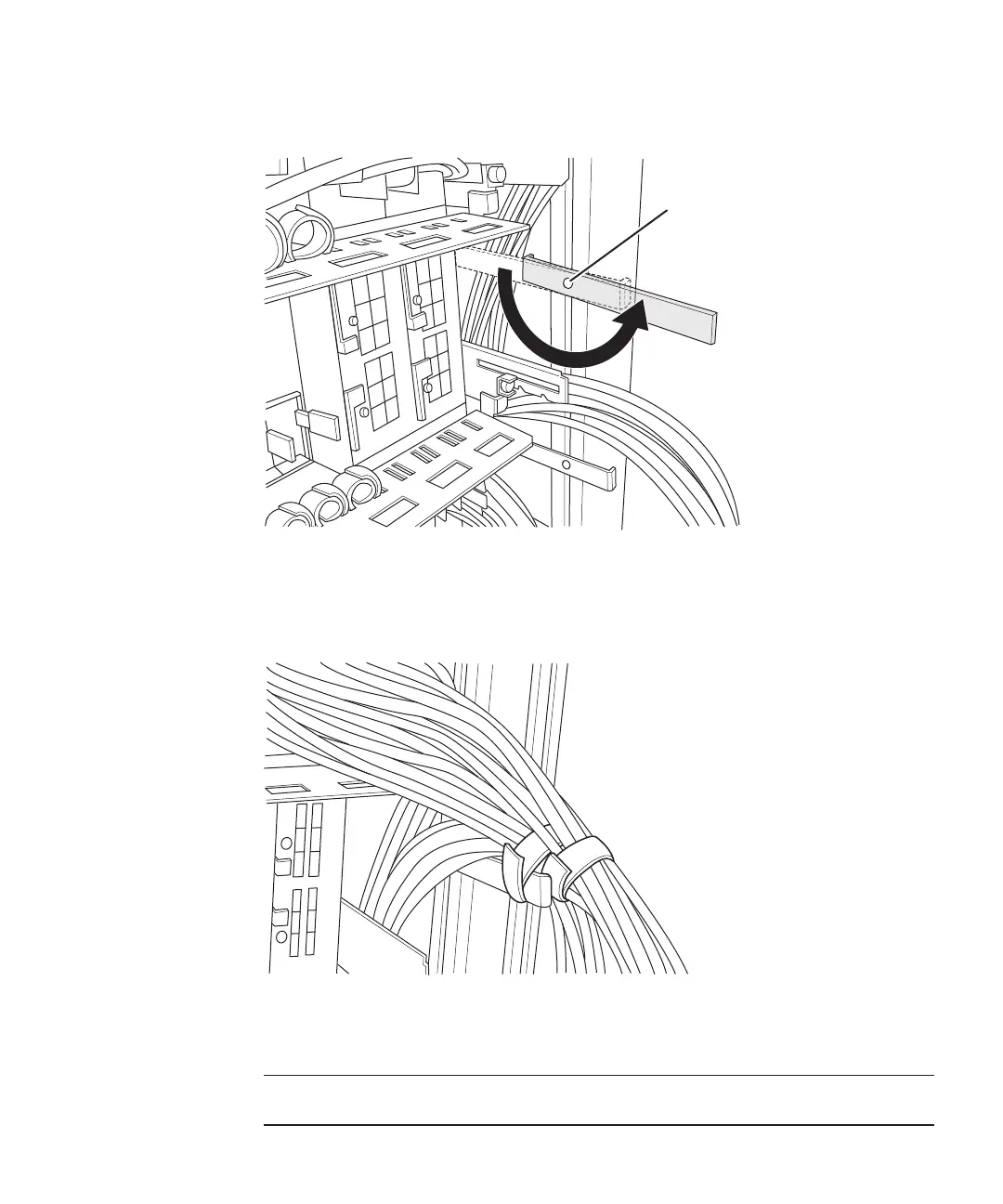

Figure 5-2
Cable holder screw
d. Use the hook-and-loop fastener to fix the crossbar cables in place to the cable
holder.
Figure 5-3
Fixing crossbar cables
Procedure when equipment rack model 16xx is
used
a. Remove all the crossbar cables from the crossbar unit.
Chapter 5 Preparations Required for Maintenance 81
