Fujitsu M10-4 - Page 184

(1)
(2)
(3)
(9)
(10)
(4)
(5)
(6)
(7)
(8)
(11)
Location
number
Component
1 PCIe card (PCI#0)
2 PCIe card (PCI#1)
3PCIe card (PCI#2)
4PCIe card (PCI#3)
5 PCIe card (PCI#4)
6 PCIe card (PCI#5)
7PCIe card (PCI#6)
8PCIe card (PCI#7)
9 PCIe card (PCI#8) (*1)
10 PCIe card (PCI#9) (*1)
11 PCIe card (PCI#10) (*1)
*1: Can be mounted only on a SPARC M10-4.

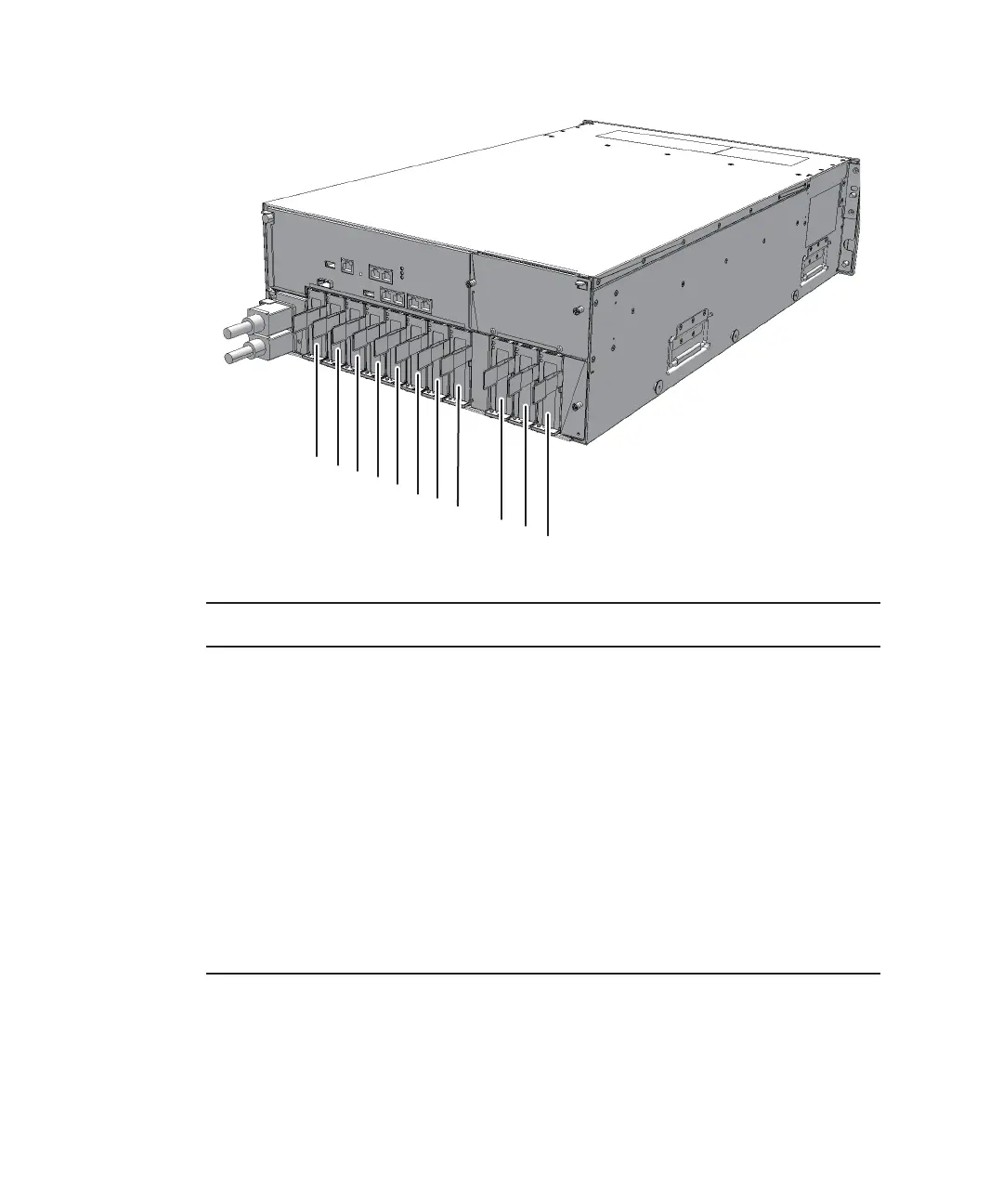

Figure 8-1
Location of the PCIe card
