Location
number Component
1
CPU
memory
unit
upper
(CMUU)
2
CPU
memory
unit
lower
(CMUL)
Note
-
FRAME-A
and
FRAME-B
cannot
be
installed
if
they
are
mixed
because
they
are
not
compatible
with
each
other.
Especially
when
you
perform
replacement
work,
be
careful
not
to
mix
the
top
cover
or
left-
and
right-side
guides
of
the
replacement
CMU
memory
unit
with
those
of
the
CMU
unit
to
be
replaced.

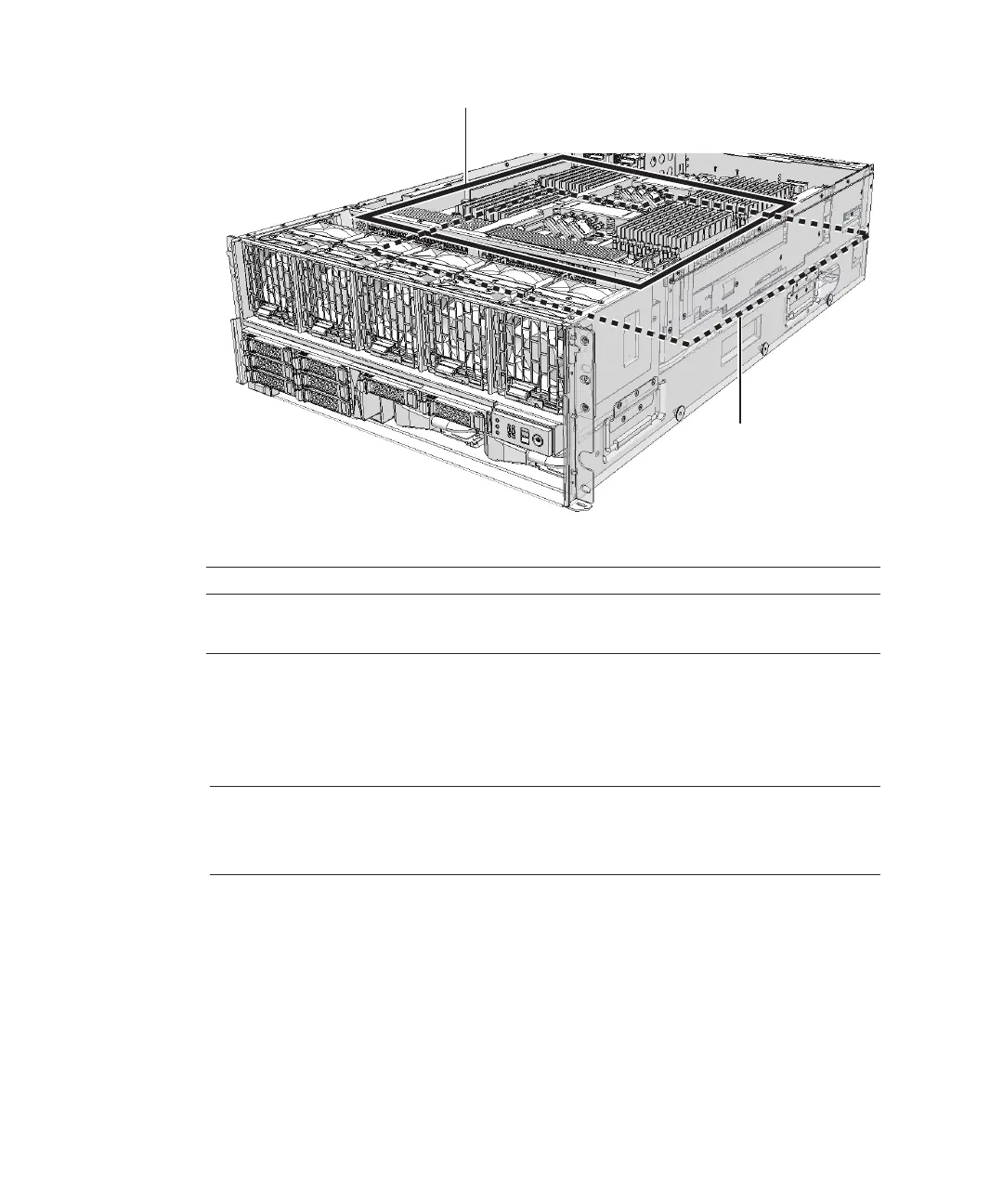

Figure
9-1
　　
Location
of
CPU
memory
unit
There
are
two
types
of
CPU
memory
units:
FRAME-A
and
FRAME-B.
The
type
of
a
CPU
memory
unit
can
be
determined
from
the
indication
on
the
label
(A
in
the
figure).
If
a
CPU
memory
unit
does
not
have
the
"FRAME-B"
indication,
it
is
a
FRAME-A
unit.
