Installing a hot-plug PSU

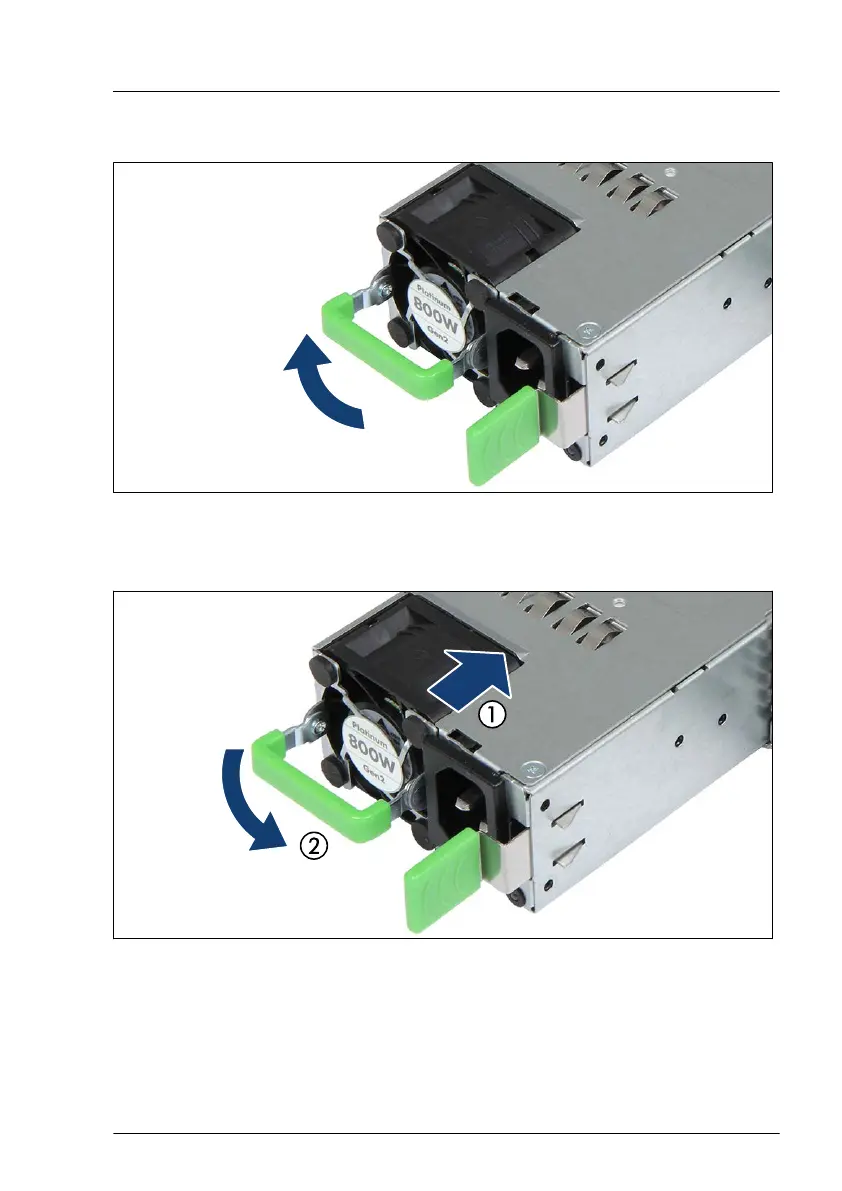

Figure 23: Folding up the handle
▶
Push the handle of the PSU halfway upward in the direction of the arrow.
Figure 24: Installing the PSU
▶
Push the PSU into its bay (1) as far as it will go until the release latch snaps
in place.
▶
Fold down the handle on the PSU (2).
Power supply unit (PSU)
RX2520 M5 Upgrade and Maintenance Manual 105
