Fujitsu PRIMERGY RX2520 M5

23RX2520 M5

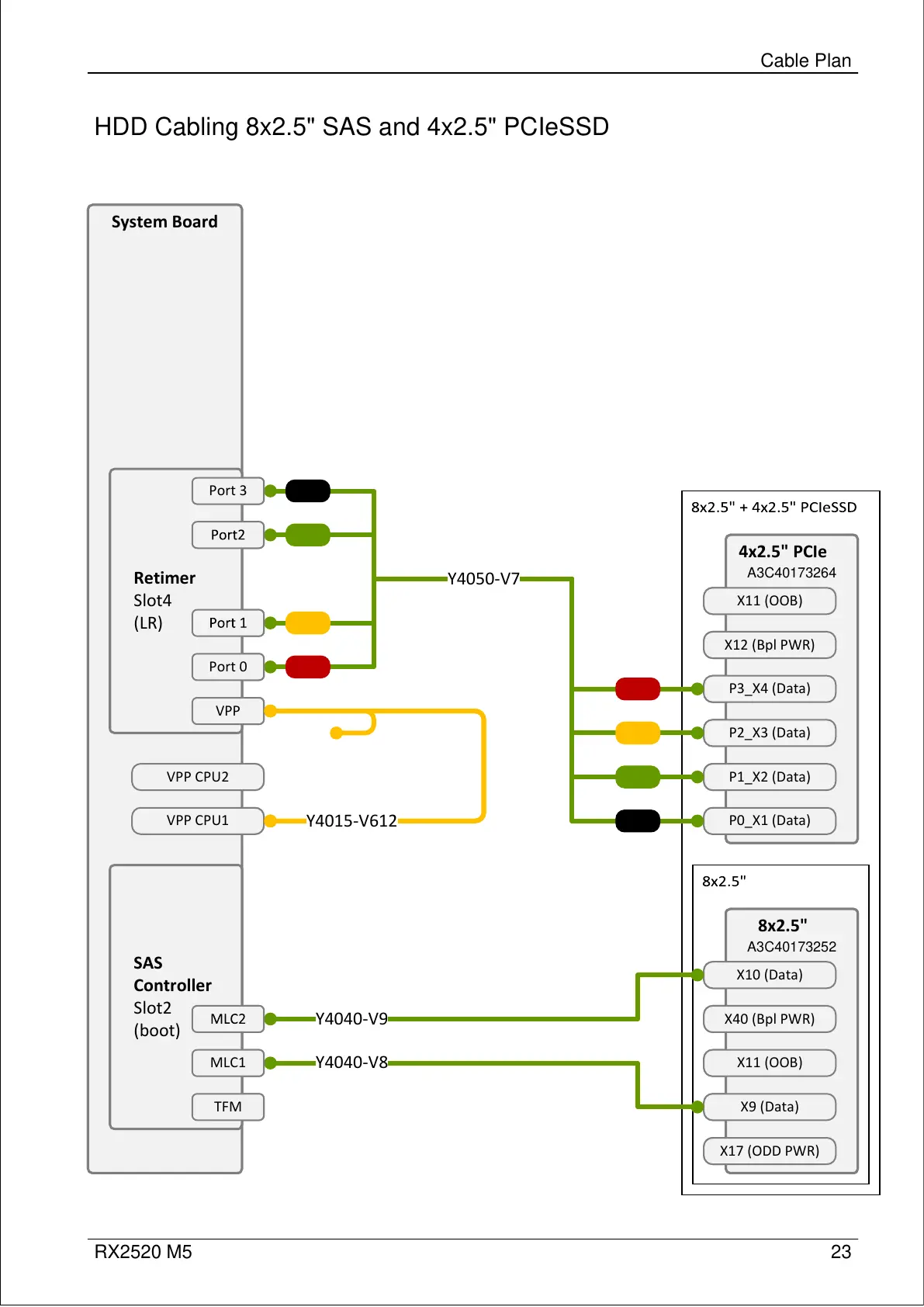

HDD Cabling 8x2.5" SAS and 4x2.5" PCIeSSD
Cable Plan
8x2.5"
X40 (Bpl PWR)
X11 (OOB)
X9 (Data)
A3C40173252
X17 (ODD PWR)
X10 (Data)
8x2.5"
X40 (Bpl PWR)
X11 (OOB)
X9 (Data)
A3C40173252
X17 (ODD PWR)
X10 (Data)
4x2.5" PCIe
X12 (Bpl PWR)
P3_X4 (Data)
P2_X3 (Data)
A3C40173264
P1_X2 (Data)
X11 (OOB)
P0_X1 (Data)
4x2.5" PCIe
X12 (Bpl PWR)
P3_X4 (Data)
P2_X3 (Data)
A3C40173264
P1_X2 (Data)
X11 (OOB)
P0_X1 (Data)
Y4050-V7
Y4040-V9
Y4040-V8
System Board
Retimer
Slot4
(LR)
Port 3
Port 0
VPP
VPP CPU1
VPP CPU2
Y4015-V612
SAS
Controller
Slot2
(boot)
MLC1
TFM
System Board
Retimer
Slot4
(LR)
Port 3
Port 0
VPP
VPP CPU1
VPP CPU2
Y4015-V612
SAS
Controller
Slot2
(boot)
MLC1
TFM
