Fujitsu PRIMERGY RX2520 M5

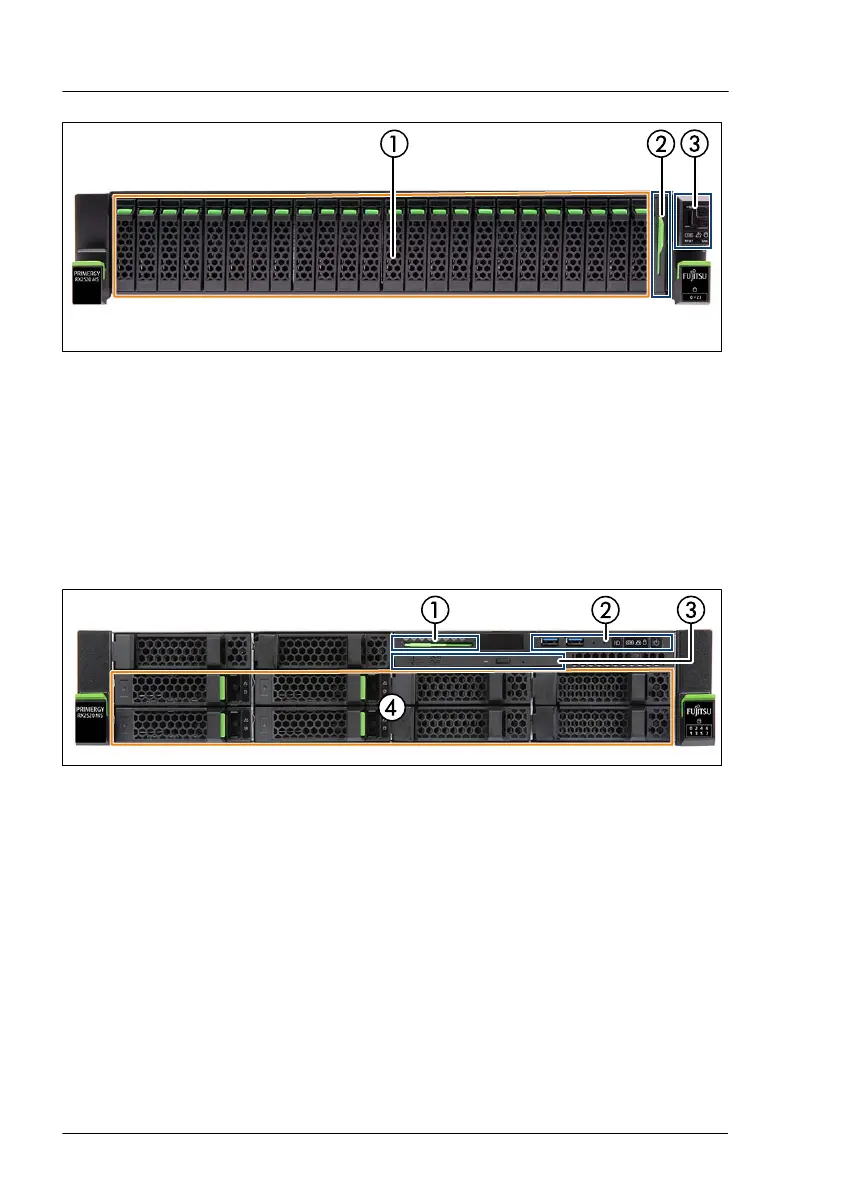

Figure 282: Front side 2.5-inch HDDs/SSDs (up to 24 HDDs/SSDs)
1 Bays for HDDs/SSDs
(depending on the configuration)
2 ID card
3 Front panel on QRL
16.1.1.2
3.5-inch HDD versions
The PRIMERGY RX2520 M5 server is available as a rack model.
Figure 283: Front side 3.5-inch HDDs (up to 8 HDDs)
1 ID card
2 Front panel module
3 ODD (option) / dummy cover
4 Bays for HDDs (depending on the
configuration)
Appendix A
434 Upgrade and Maintenance Manual RX2520 M5
