Installing the air duct

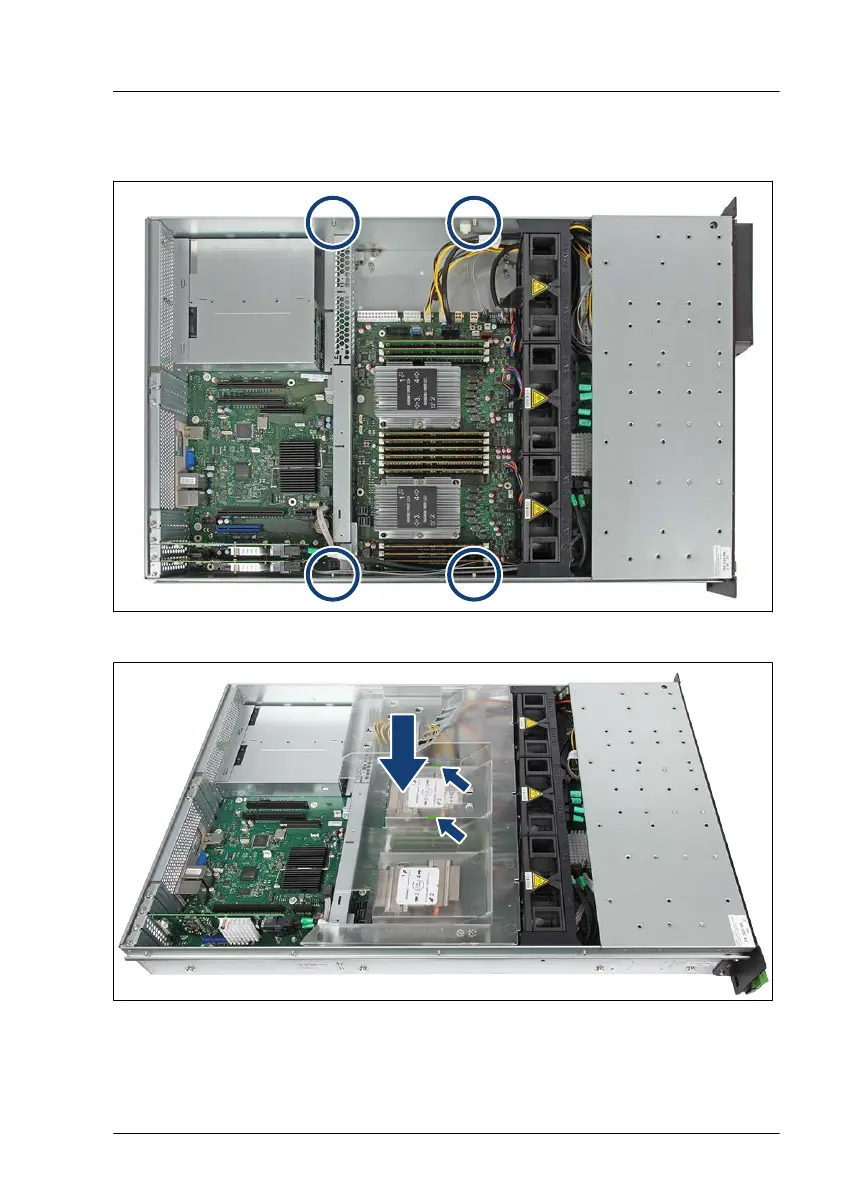

Figure 1
1: Air duct guiding points
Figure 12: Installing the air duct
▶
Install the air duct using the green touch points.
Basic hardware procedures
RX2520 M5
Upgrade and Maintenance Manual
59
58
60
