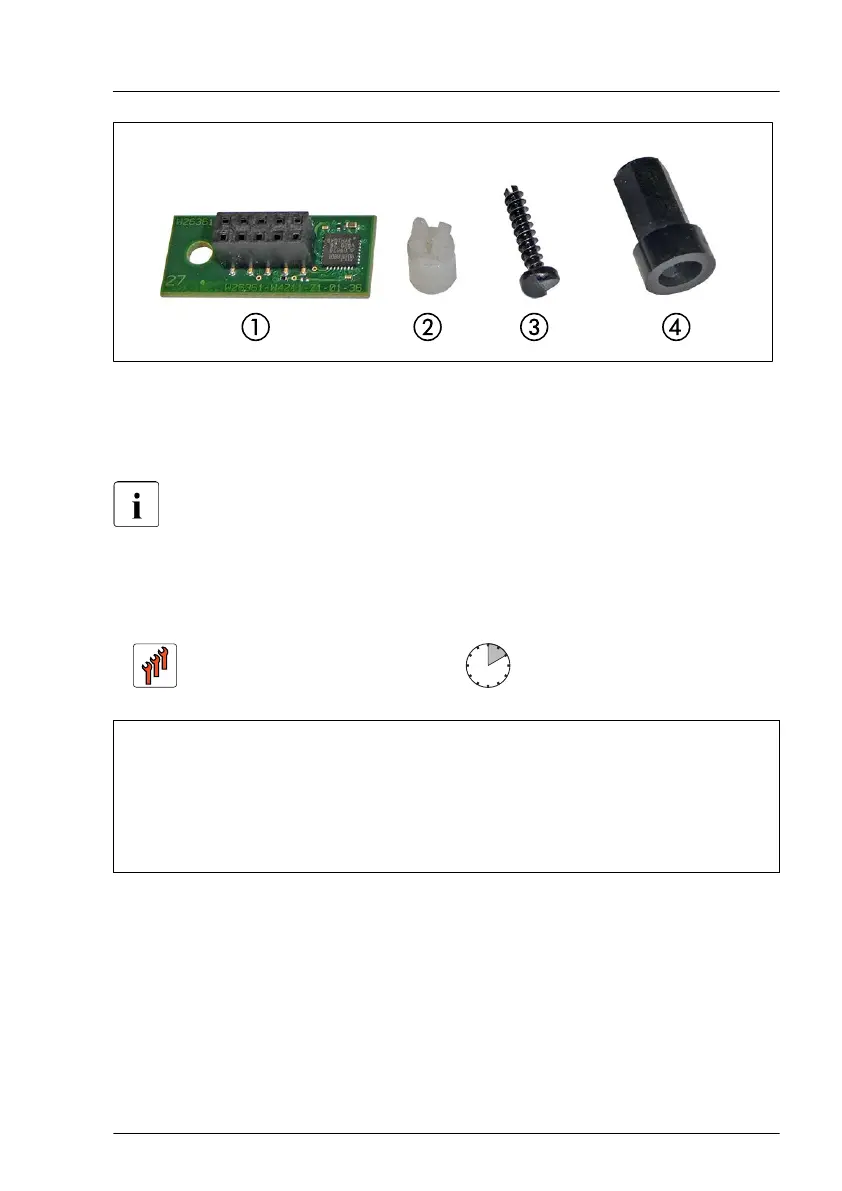

Figure 255: TPM installation kit - example 2
1 TPM
2 TPM spacer
3
Special screw for TPM
4 TPM bit insert for TPM special screw
The black TPM spacer is not used in this server.
15.4.2 Installing the TPM
Field Replaceable Unit
(FRU)
Hardware: 5 minutes
Software: 5 minutes
Tools: – Bit screw driver
–
TPM bit insert
(*)
(*)
For Japan:
–
TPM module fixing tool (S26361-F3552-L909)
Preliminary steps
▶
"Suspending BitLocker functionality" on page 65
.
▶
"Shutting down the server" on page 45.
▶
"Disconnecting the power cord" on page 46.
▶
"Getting access to the component" on page 47.
System board and components
RX2520 M5 Upgrade and Maintenance Manual 391
