15.6.3 Removing an M.2 SSD
Upgrade and Repair Unit
(URU)
Hardware: 5 minutes
Tools: – Phillips PH1 / (+) No. 1 screw driver
–
Hexagon screw driver (for moving the screw to another hexagon
stand-of
f)
Preliminary steps
▶
"Shutting down the server" on page
45
.
▶
"Disconnecting the power cord" on page 46.
▶
"Getting access to the component" on page 47.
▶
"Removing the air duct" on page 58.
▶
"Removing the crossbar" on page 62.
▶
If applicable, "Removing the expansion card" on page 237.
Removing the M.2 SSD

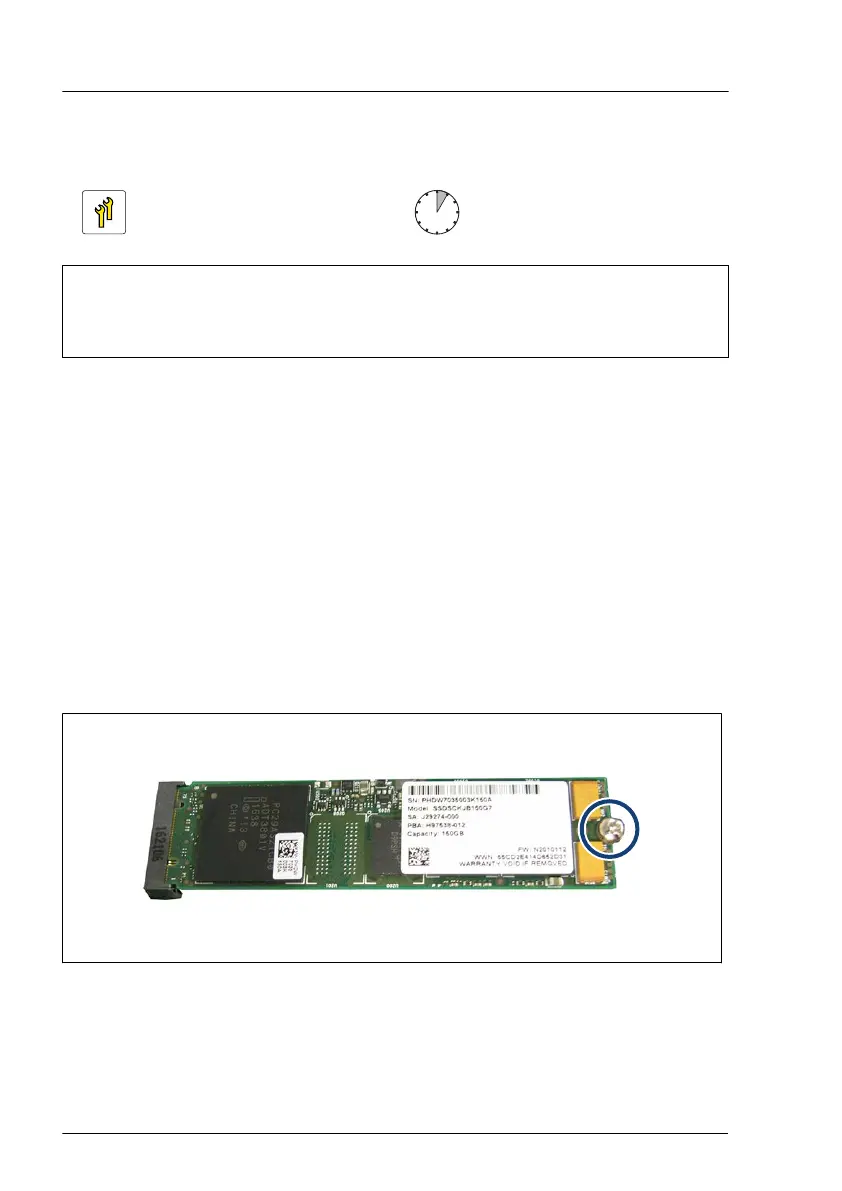

Figure 269: Removing the M.2 SSD (A)
▶
Remove the screw (see circle).
