Fujitsu PRIMERGY RX2520 M5 Upgrade And Maintenance Manual

2RX2520 M5

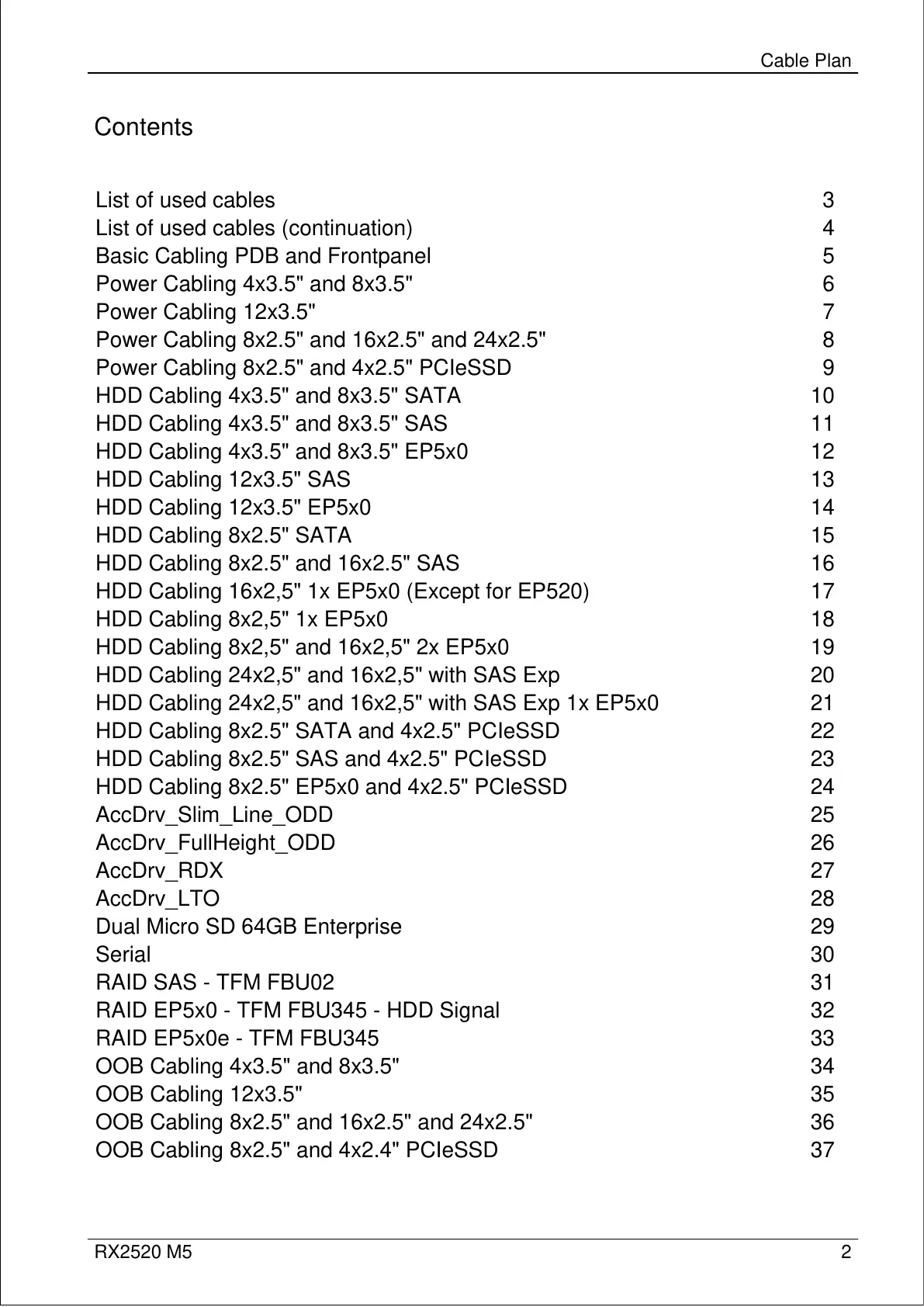

Contents
Cable Plan
List of used cables 3List of used cables 3
List of used cables (continuation) 4List of used cables (continuation) 4
Basic Cabling PDB and Frontpanel 5Basic Cabling PDB and Frontpanel 5
Power Cabling 4x3.5" and 8x3.5" 6Power Cabling 4x3.5" and 8x3.5" 6
Power Cabling 12x3.5" 7Power Cabling 12x3.5" 7
Power Cabling 8x2.5" and 16x2.5" and 24x2.5" 8Power Cabling 8x2.5" and 16x2.5" and 24x2.5" 8
Power Cabling 8x2.5" and 4x2.5" PCIeSSD 9Power Cabling 8x2.5" and 4x2.5" PCIeSSD 9
HDD Cabling 4x3.5" and 8x3.5" SATA 10HDD Cabling 4x3.5" and 8x3.5" SATA 10
HDD Cabling 4x3.5" and 8x3.5" SAS 11HDD Cabling 4x3.5" and 8x3.5" SAS 11
HDD Cabling 4x3.5" and 8x3.5" EP5x0 12HDD Cabling 4x3.5" and 8x3.5" EP5x0 12
HDD Cabling 12x3.5" SAS 13HDD Cabling 12x3.5" SAS 13
HDD Cabling 12x3.5" EP5x0 14HDD Cabling 12x3.5" EP5x0 14
HDD Cabling 8x2.5" SATA 15HDD Cabling 8x2.5" SATA 15
HDD Cabling 8x2.5" and 16x2.5" SAS 16HDD Cabling 8x2.5" and 16x2.5" SAS 16
HDD Cabling 16x2,5" 1x EP5x0 (Except for EP520) 17HDD Cabling 16x2,5" 1x EP5x0 (Except for EP520) 17
HDD Cabling 8x2,5" 1x EP5x0 18HDD Cabling 8x2,5" 1x EP5x0 18
HDD Cabling 8x2,5" and 16x2,5" 2x EP5x0 19HDD Cabling 8x2,5" and 16x2,5" 2x EP5x0 19
HDD Cabling 24x2,5" and 16x2,5" with SAS Exp 20HDD Cabling 24x2,5" and 16x2,5" with SAS Exp 20
HDD Cabling 24x2,5" and 16x2,5" with SAS Exp 1x EP5x0 21HDD Cabling 24x2,5" and 16x2,5" with SAS Exp 1x EP5x0 21
HDD Cabling 8x2.5" SATA and 4x2.5" PCIeSSD 22HDD Cabling 8x2.5" SATA and 4x2.5" PCIeSSD 22
HDD Cabling 8x2.5" SAS and 4x2.5" PCIeSSD 23HDD Cabling 8x2.5" SAS and 4x2.5" PCIeSSD 23
HDD Cabling 8x2.5" EP5x0 and 4x2.5" PCIeSSD 24HDD Cabling 8x2.5" EP5x0 and 4x2.5" PCIeSSD 24
AccDrv_Slim_Line_ODD 25AccDrv_Slim_Line_ODD 25
AccDrv_FullHeight_ODD 26AccDrv_FullHeight_ODD 26
AccDrv_RDX 27AccDrv_RDX 27
AccDrv_LTO 28AccDrv_LTO 28
Dual Micro SD 64GB Enterprise 29Dual Micro SD 64GB Enterprise 29
Serial 30Serial 30
RAID SAS - TFM FBU02 31RAID SAS - TFM FBU02 31
RAID EP5x0 - TFM FBU345 - HDD Signal 32RAID EP5x0 - TFM FBU345 - HDD Signal 32
RAID EP5x0e - TFM FBU345 33RAID EP5x0e - TFM FBU345 33
OOB Cabling 4x3.5" and 8x3.5" 34OOB Cabling 4x3.5" and 8x3.5" 34
OOB Cabling 12x3.5" 35OOB Cabling 12x3.5" 35
OOB Cabling 8x2.5" and 16x2.5" and 24x2.5" 36OOB Cabling 8x2.5" and 16x2.5" and 24x2.5" 36
OOB Cabling 8x2.5" and 4x2.4" PCIeSSD 37OOB Cabling 8x2.5" and 4x2.4" PCIeSSD 37

Fujitsu PRIMERGY RX2520 M5 Specifications

General

Tcase	72 °C
Scalability	4S
Processor cache	16.5 MB
Processor cores	4
Processor model	5222
System bus rate	- GT/s
Processor socket	LGA 3647 (Socket P)
Processor threads	8
Processor codename	Cascade Lake
Execute Disable Bit	Yes
Motherboard chipset	Intel® C624
Processor frequency	3.8 GHz
Processor cache type	L3
Processor lithography	14 nm
Processor manufacturer	Intel
Processor package size	76.0 x 56.5 mm
Processor boost frequency	3.9 GHz
Processor operating modes	64-bit
Embedded options available	No
Supported instruction sets	AVX-512
Thermal Design Power (TDP)	105 W
Number of processors installed	1
Maximum number of SMP processors	2
Maximum number of PCI Express lanes	48
Memory types supported by processor	DDR4-SDRAM
Memory clock speeds supported by processor	2933 MHz
Maximum internal memory supported by processor	1024 GB
HDD size	- \
RAID levels	0, 1
HDD interface	-
Supported HDD sizes	2.5 \
Total storage capacity	0 GB
Maximum storage capacity	- TB
Number of HDDs installed	0
Chassis type	Rack (2U)
Trusted Platform Module (TPM) version	2.0
Compatible operating systems	Microsoft Hyper-V Server 2016 Microsoft Windows Server 2016 Datacenter Microsoft Windows Server 2016 Standard Microsoft Windows Server 2016 Essentials Microsoft Windows Storage Server 2016 Standard Microsoft Hyper-V Server 2012 R2 Microsoft Windows Server 2012 R2 Datacenter Microsoft Windows Server 2012 R2 Standard Microsoft Windows Server 2012 R2 Essentials Microsoft Windows Storage Server 2012 R2 Standard VMware vSphere 6.5 VMware vSphere 6.0 SUSE Linux Enterprise Server 12 Red Hat Enterprise Linux 7 Red Hat Enterprise Linux 6 Univention Corporate Server 4
Memory slots	12
Internal memory	32 GB
Maximum internal memory	768 GB
Cabling technology	10/100/1000Base-T(X)
Ethernet interface type	Gigabit Ethernet
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	6
Power supply	800 W
Operating temperature (T-T)	5 - 45 °C
Operating relative humidity (H-H)	10 - 85 %
Certification	CB, RoHS, WEEE, GS, CE, CSAc/us, FCC Class A, ICES-003/NMB-003 Class A, VCCI:V3 Class A + JIS 61000-3-2, EAC, KC, CCC, RCM, BSMI
PCI Express slots version	3.0
PCI Express x16 (Gen 3.x) slots	3
On-board graphics card model	Not available
Processor ARK ID	192445

Weight and Dimensions

Depth	770 mm
Width	482.4 mm
Height	86.6 mm
Weight	25000 g
