Fujitsu PRIMERGY RX2520 M5

3RX2520 M5

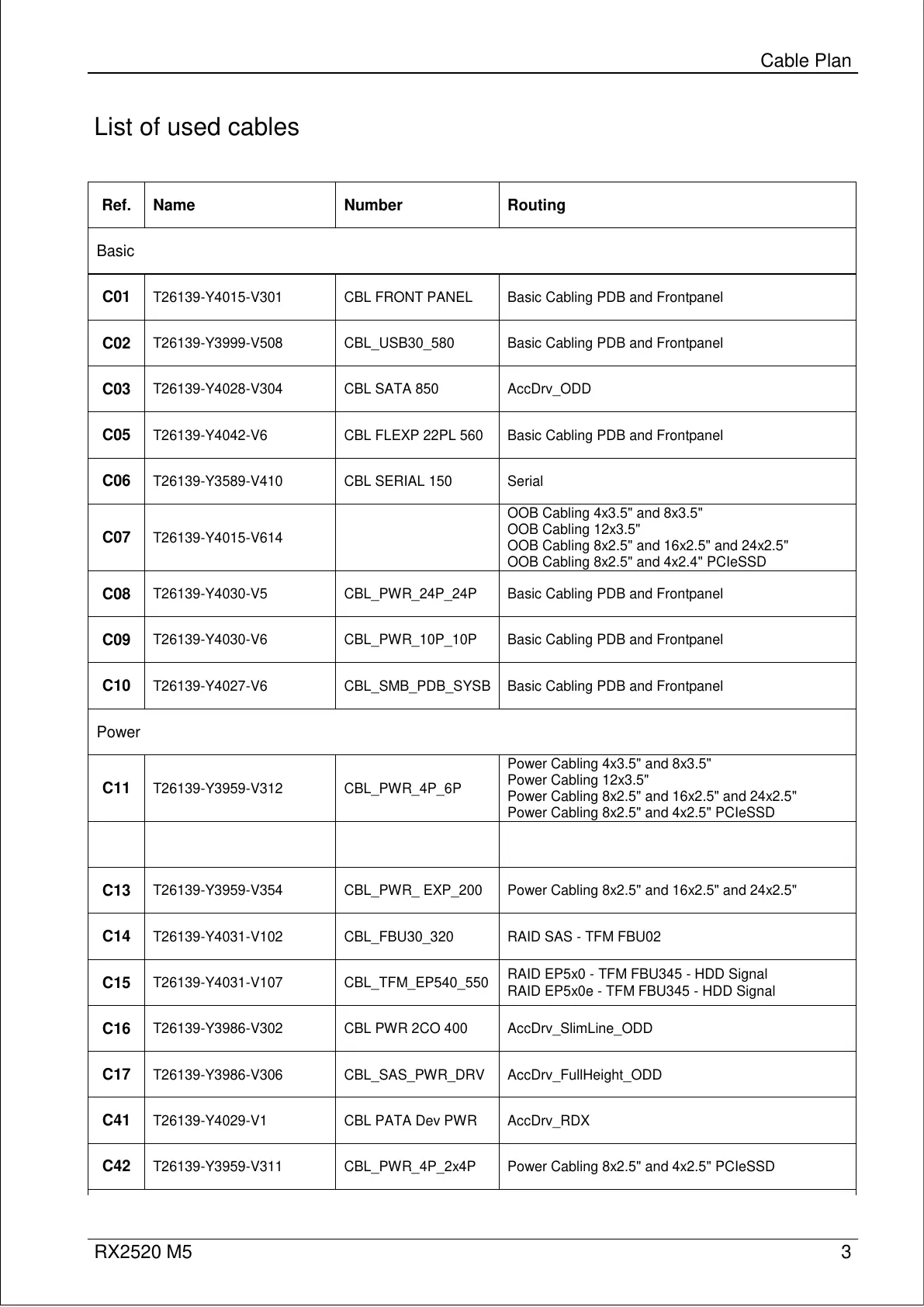

List of used cables
Cable Plan
Ref.
Name
Number
Routing
Basic
C01
T26139-Y4015-V301
CBL FRONT PANEL
Basic Cabling PDB and Frontpanel
C02
T26139-Y3999-V508
CBL_USB30_580
Basic Cabling PDB and Frontpanel
C03
T26139-Y4028-V304
CBL SATA 850
AccDrv_ODD
C05
T26139-Y4042-V6
CBL FLEXP 22PL 560
Basic Cabling PDB and Frontpanel
C06
T26139-Y3589-V410
CBL SERIAL 150
Serial
C07
T26139-Y4015-V614
OOB Cabling 4x3.5" and 8x3.5"
OOB Cabling 12x3.5"
OOB Cabling 8x2.5" and 16x2.5" and 24x2.5"
OOB Cabling 8x2.5" and 4x2.4" PCIeSSD
C08
T26139-Y4030-V5
CBL_PWR_24P_24P
Basic Cabling PDB and Frontpanel
C09
T26139-Y4030-V6
CBL_PWR_10P_10P
Basic Cabling PDB and Frontpanel
C10
T26139-Y4027-V6
CBL_SMB_PDB_SYSB
Basic Cabling PDB and Frontpanel
Power
C11
T26139-Y3959-V312
CBL_PWR_4P_6P
Power Cabling 4x3.5" and 8x3.5"
Power Cabling 12x3.5"
Power Cabling 8x2.5" and 16x2.5" and 24x2.5"
Power Cabling 8x2.5" and 4x2.5" PCIeSSD
C13
T26139-Y3959-V354
CBL_PWR_ EXP_200
Power Cabling 8x2.5" and 16x2.5" and 24x2.5"
C14
T26139-Y4031-V102
CBL_FBU30_320
RAID SAS - TFM FBU02
C15
T26139-Y4031-V107
CBL_TFM_EP540_550
RAID EP5x0 - TFM FBU345 - HDD Signal
RAID EP5x0e - TFM FBU345 - HDD Signal
C16
T26139-Y3986-V302
CBL PWR 2CO 400
AccDrv_SlimLine_ODD
C17
T26139-Y3986-V306
CBL_SAS_PWR_DRV
AccDrv_FullHeight_ODD
C41
T26139-Y4029-V1
CBL PATA Dev PWR
AccDrv_RDX
C42
T26139-Y3959-V311
CBL_PWR_4P_2x4P
Power Cabling 8x2.5" and 4x2.5" PCIeSSD
Data
C30
