SERIAL
SATA ODD
JP2
JP1
SSD2
M.2
M.2
SSD1
TPM
JP3
LAN 1
USB 3.0
Slot 2 (CPU 1)
Slot 1 (CPU 1)
Slot 4 (CPU 1) - slot riser card
Slot 3 (CPU 1)
SATA
4-7
SATA
0-3
Buzzer
Battery

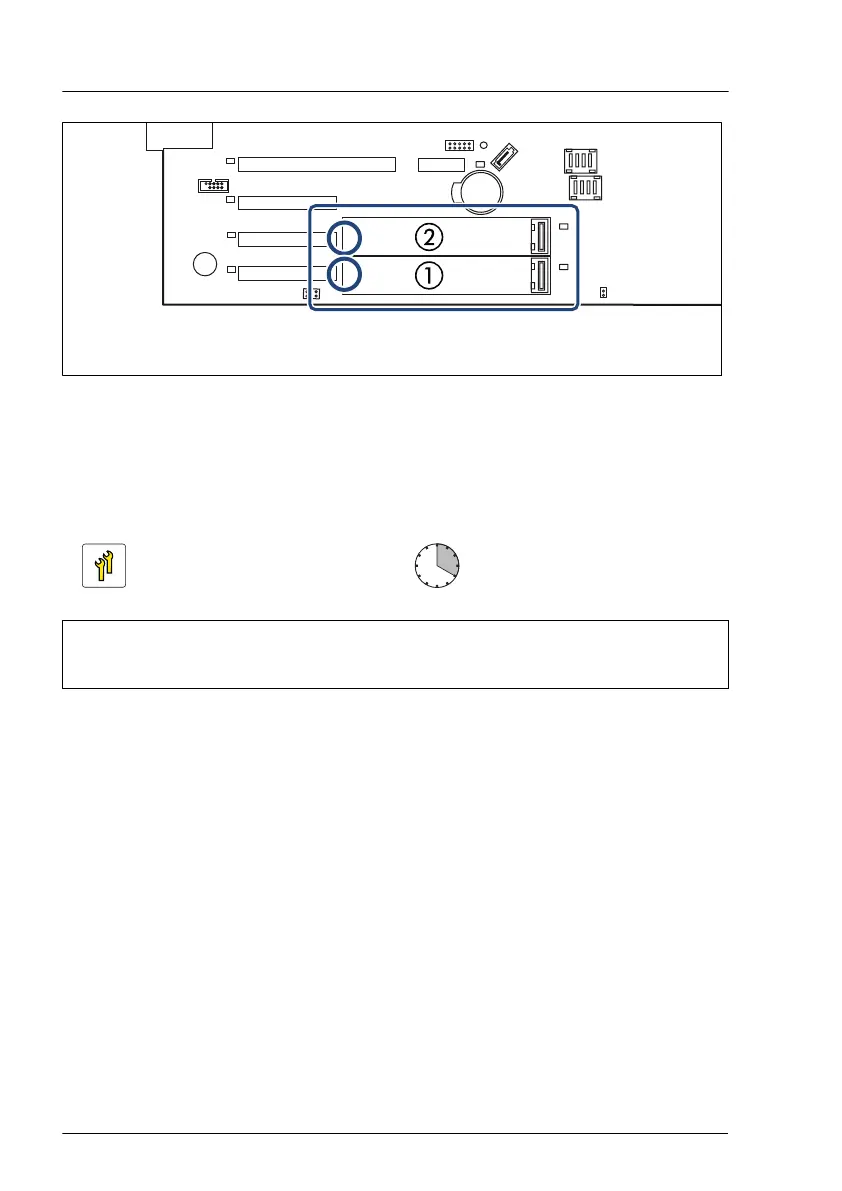

Figure 265: Slots and bolts for M.2 SSDs
1 M.2 slot 1 2 M.2 slot 2
15.6.2 Installing an M.2 SSD
Upgrade and Repair Unit
(URU)
Hardware: 5 minutes
Software: 15 minutes
Tools: – Phillips PH1 / (+) No. 1 screw driver
– Hexagon screw driver
Preliminary steps
▶
"Shutting down the server" on page 45
.
▶
"Disconnecting the power cord" on page 46.
▶
"Getting access to the component" on page 47.
▶
"Removing the air duct" on page 58.
▶
"Removing the crossbar" on page 62.
▶
If applicable, "Removing the expansion card" on page 237.
System board and components
406 Upgrade and Maintenance Manual RX2520 M5
