Installing the M.2 SSD

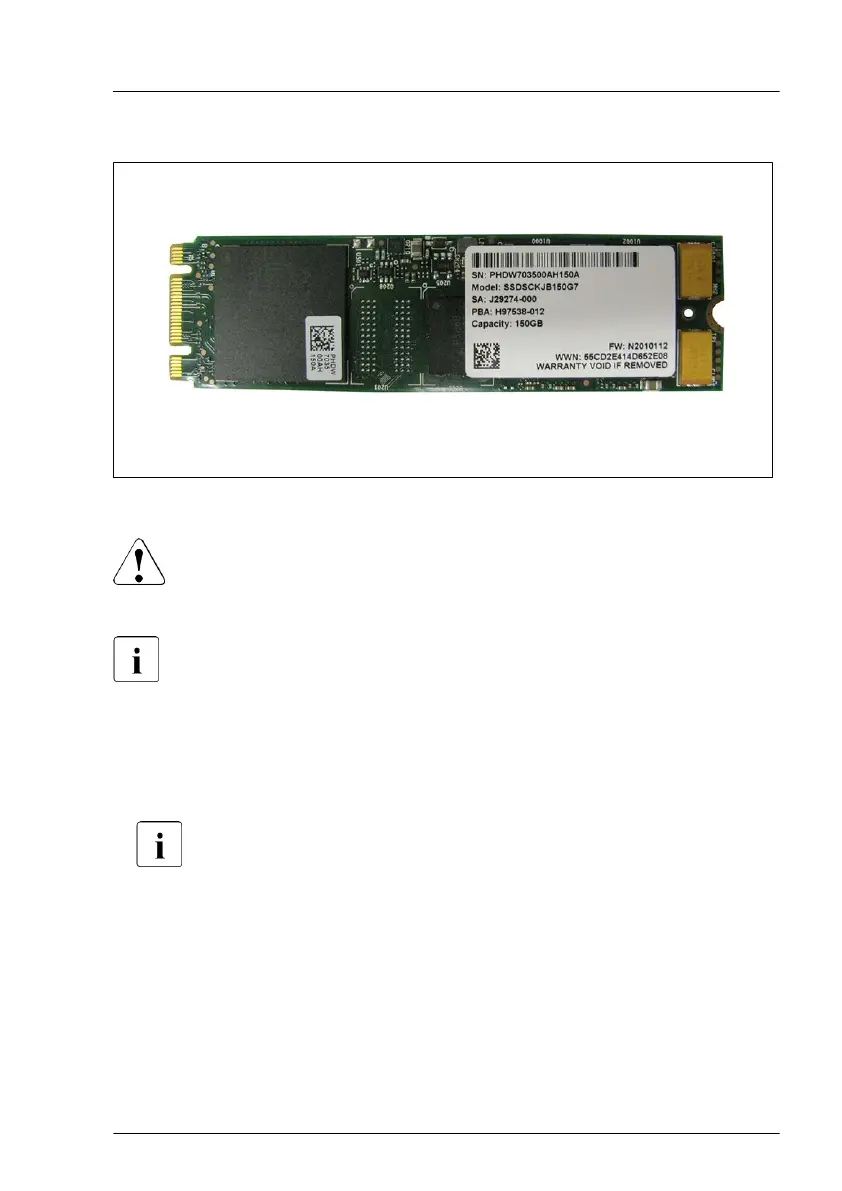

Figure 266: Example M.2 SSD
CAUTION
An M.2 SSD in M.2 slot 2 is not recognized, if M.2 slot 1 is free.
▶
The M.2 slot 1 must be equipped first.
Each M.2 SSD needs one hexagon stand-off for fastening. To support
different length of M.2 SSD, several nuts are on the system board
indicating the positions for fastening the M.2 SSD.
If no M.2 SSD has been installed before:
▶
Remove the screw (see circles in Figure 265
).
If the hexagon stand-off is unscrewed as well, remove the screw from
the hexagon stand-off.
▶
Install the hexagon stand-off on the right position depending on the length of
the M.2 SSD.
System board and components
RX2520 M5 Upgrade and Maintenance Manual 407
