4.8 Handling the air duct
4.8.1 Removing the air duct

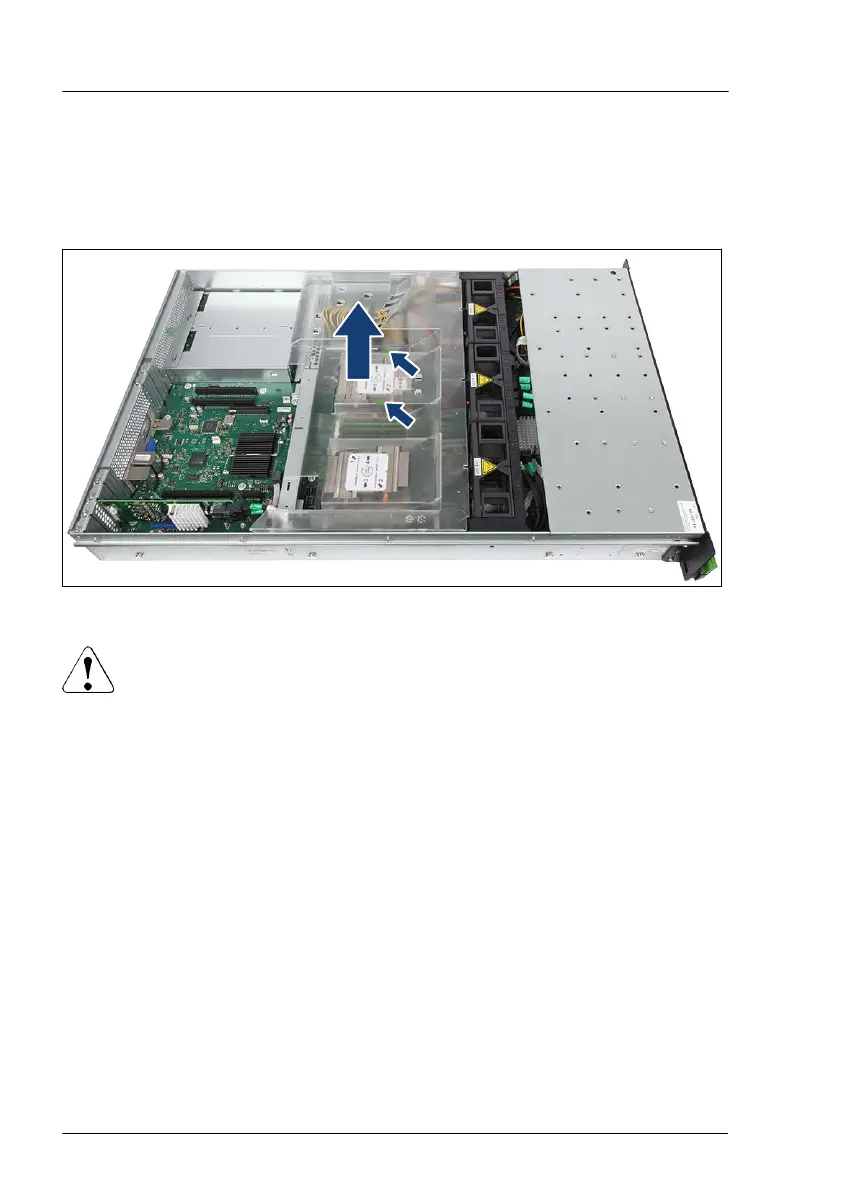

Figure 10: Removing the air duct
CAUTION
▶
Be careful with the FBU cable.
▶
If an FBU is installed, first follow the procedure that is described in
"Removing the FBU with the holder" on page 252
.
▶
Remove the air duct vertically upwards using the green touch points.
Basic hardware procedures
