Handling the crossbar
4.10.1
Removing the crossbar

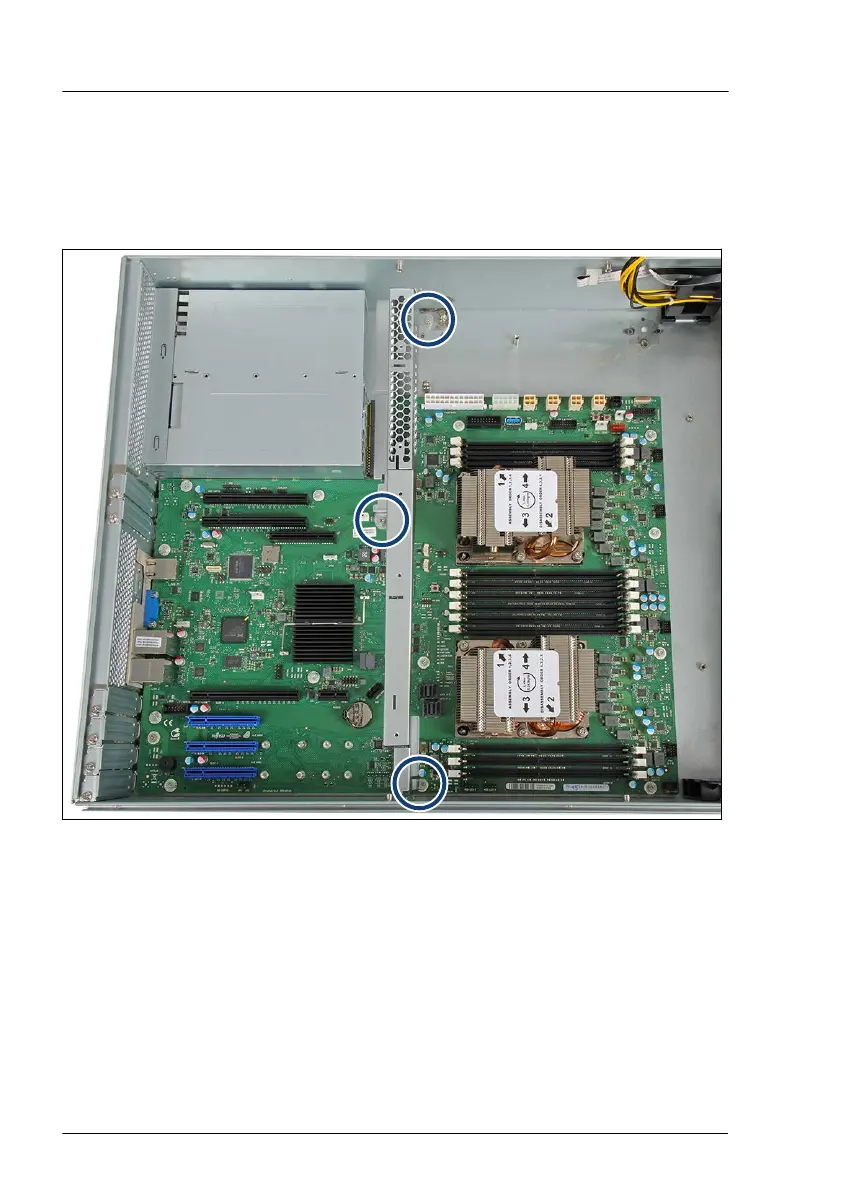

Figure 15: Removing the crossbar
▶
Remove the three screws of the crossbar (see circles).
▶
Remove the crossbar
.
