9.4 Handling SFP+ transceiver modules
9.4.1 Installing SFP+ transceiver modules
Upgrade and Repair Unit
(URU)
Hardware: 5 minutes
Tools: tool-less
A network adapter is equipped with one or two SFP+ (small form-factor
pluggable) transceiver modules. SFP+ transceiver modules are hot-pluggable.
Installing SFP+ transceiver modules

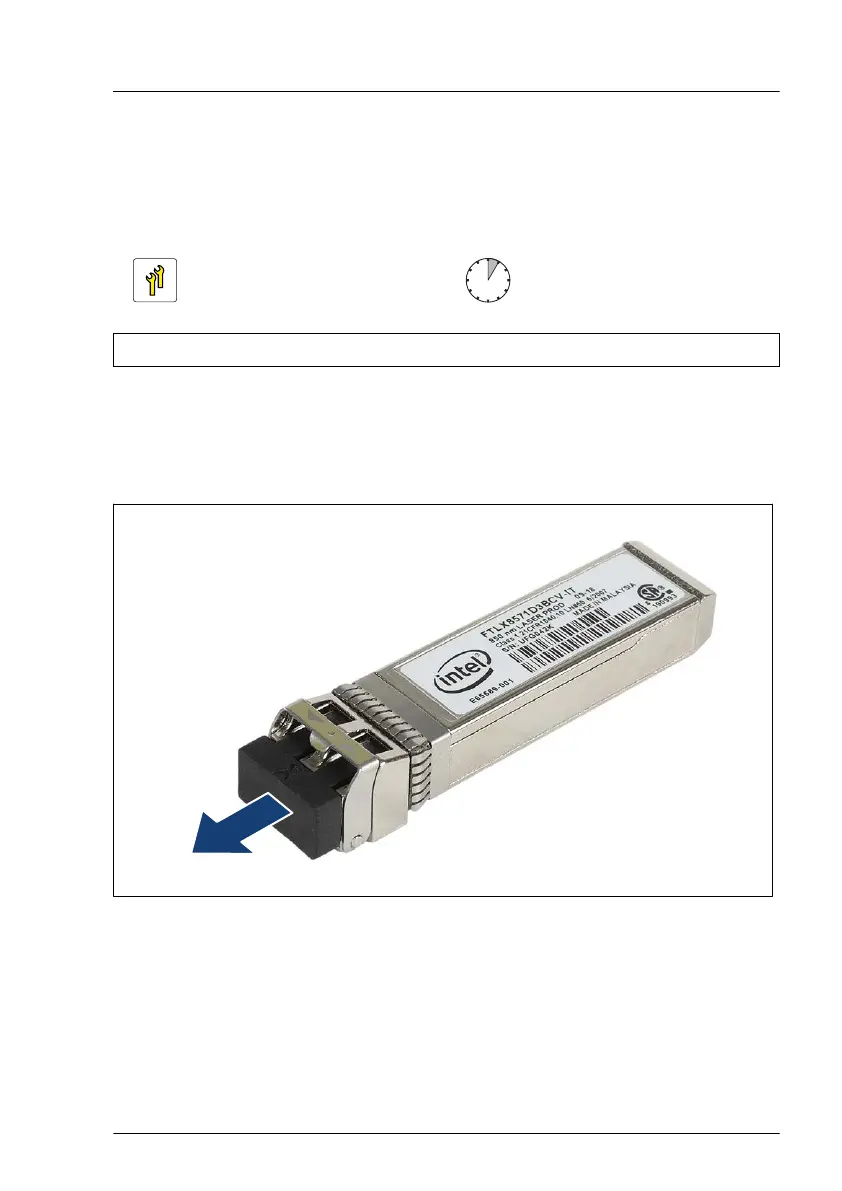

Figure 118: Removing the protective cap
Expansion cards and backup units
RX2520 M5 Upgrade and Maintenance Manual 221
