Fujitsu PRIMERGY RX2520 M5

5RX2520 M5

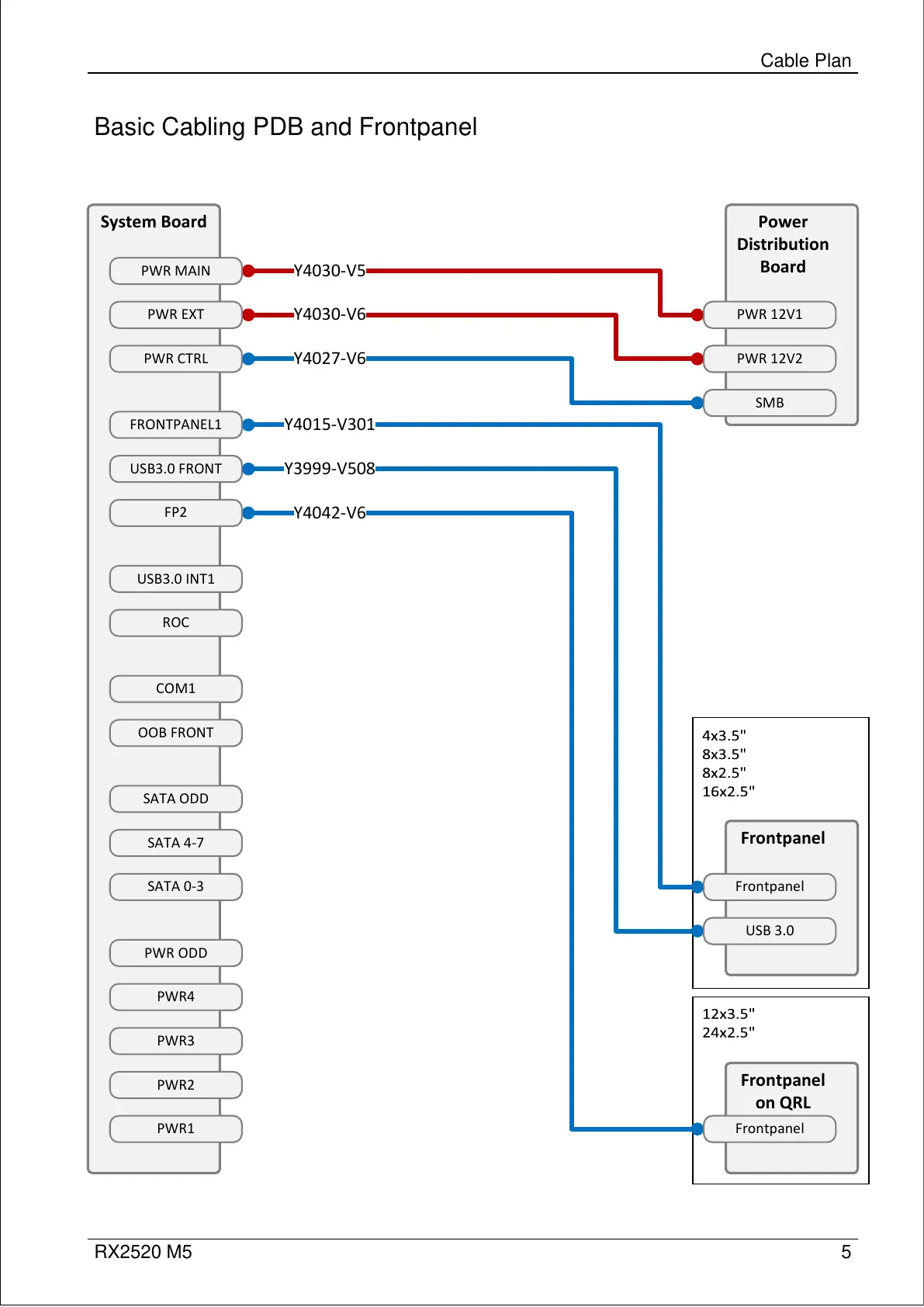

Basic Cabling PDB and Frontpanel
Cable Plan
Y4015-V301
Y3999-V508
Y4042-V6
Y4030-V5
Y4030-V6
Y4027-V6
System Board
PWR MAIN
PWR EXT
PWR CTRL
USB3.0 FRONT
FP2
USB3.0 INT1
ROC
COM1
OOB FRONT
SATA 4-7
SATA 0-3
PWR ODD
PWR4
PWR3
PWR2
FRONTPANEL1
SATA ODD
PWR1
System Board
PWR MAIN
PWR EXT
PWR CTRL
USB3.0 FRONT
FP2
USB3.0 INT1
ROC
COM1
OOB FRONT
SATA 4-7
SATA 0-3
PWR ODD
PWR4
PWR3
PWR2
FRONTPANEL1
SATA ODD
PWR1
Frontpanel
Frontpanel
USB 3.0
Frontpanel
Frontpanel
USB 3.0
Frontpanel
on QRL
Frontpanel
Frontpanel
on QRL
Frontpanel
Power
Distribution
Board
PWR 12V1
PWR 12V2
SMB
Power
Distribution
Board
PWR 12V1
PWR 12V2
SMB
