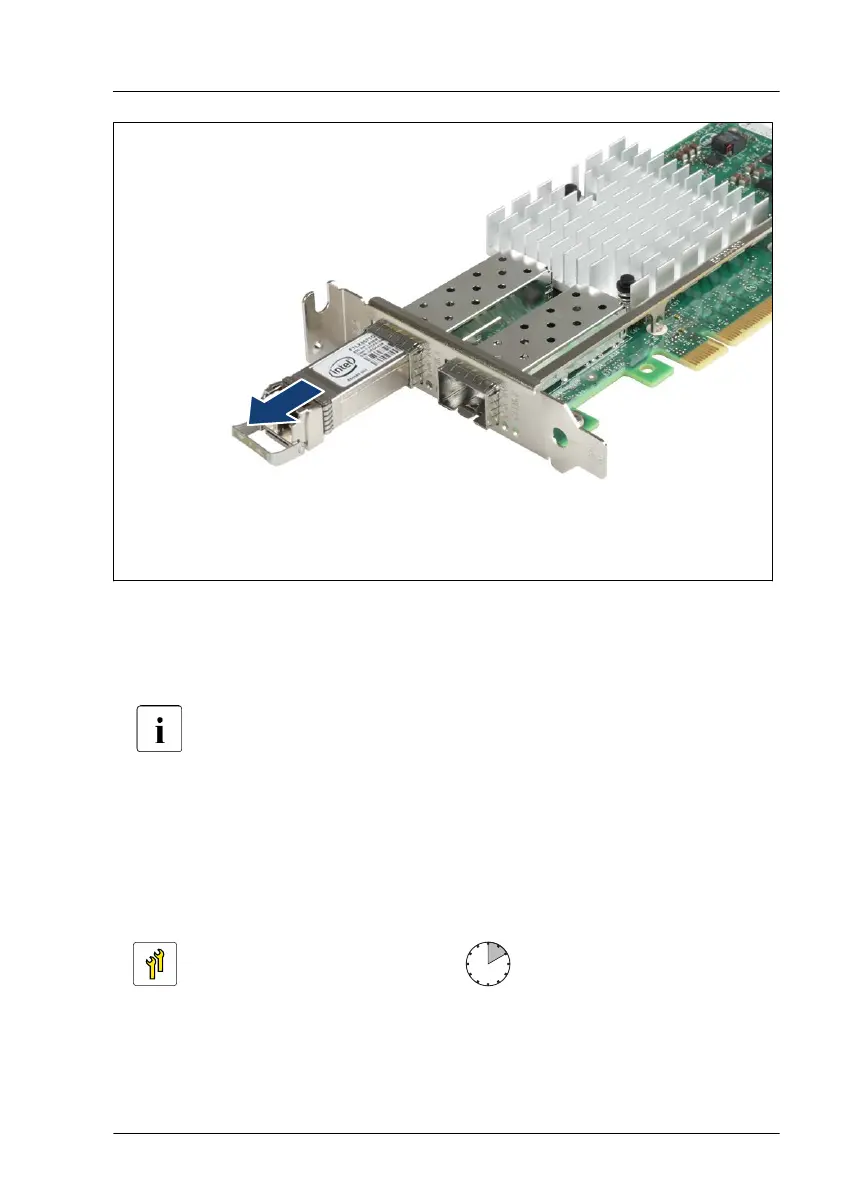

Figure 126: Removing the SFP+ transceiver module
▶
Pull the SFP+ transceiver module out of its socket connector.
▶
Attach the protective cap to the SFP+ transceiver module.
Place the removed SFP+ transceiver module in an antistatic bag or
other protective environment.
9.5 Expansion cards and riser cards
9.5.1 Installing an expansion card
Upgrade and Repair Unit
(URU)
Hardware: 5 minutes
Software: 5 minutes
Expansion cards and backup units
RX2520 M5 Upgrade and Maintenance Manual 229
