Fujitsu PRIMERGY RX2520 M5

9RX2520 M5

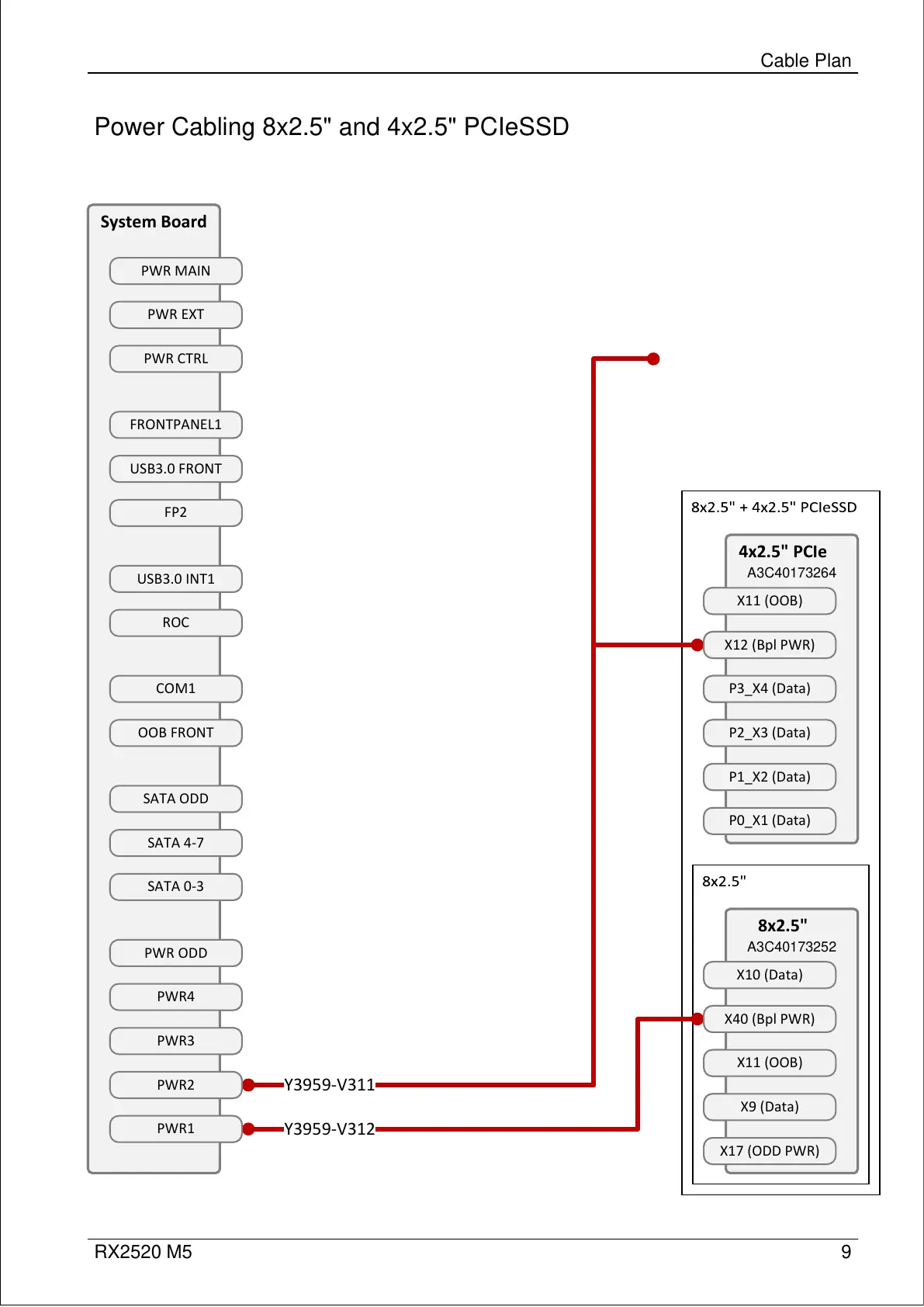

Power Cabling 8x2.5" and 4x2.5" PCIeSSD
Cable Plan
Y3959-V312
Y3959-V311
System Board
PWR MAIN
PWR EXT
PWR CTRL
USB3.0 FRONT
FP2
USB3.0 INT1
ROC
COM1
OOB FRONT
SATA 4-7
SATA 0-3
PWR ODD
PWR4
PWR3
PWR2
FRONTPANEL1
SATA ODD
PWR1
System Board
PWR MAIN
PWR EXT
PWR CTRL
USB3.0 FRONT
FP2
USB3.0 INT1
ROC
COM1
OOB FRONT
SATA 4-7
SATA 0-3
PWR ODD
PWR4
PWR3
PWR2
FRONTPANEL1
SATA ODD
PWR1
8x2.5"
X40 (Bpl PWR)
X11 (OOB)
X9 (Data)
A3C40173252
X17 (ODD PWR)
X10 (Data)
8x2.5"
X40 (Bpl PWR)
X11 (OOB)
X9 (Data)
A3C40173252
X17 (ODD PWR)
X10 (Data)
4x2.5" PCIe
X12 (Bpl PWR)
P3_X4 (Data)
P2_X3 (Data)
A3C40173264
P1_X2 (Data)
X11 (OOB)
P0_X1 (Data)
4x2.5" PCIe
X12 (Bpl PWR)
P3_X4 (Data)
P2_X3 (Data)
A3C40173264
P1_X2 (Data)
X11 (OOB)
P0_X1 (Data)
