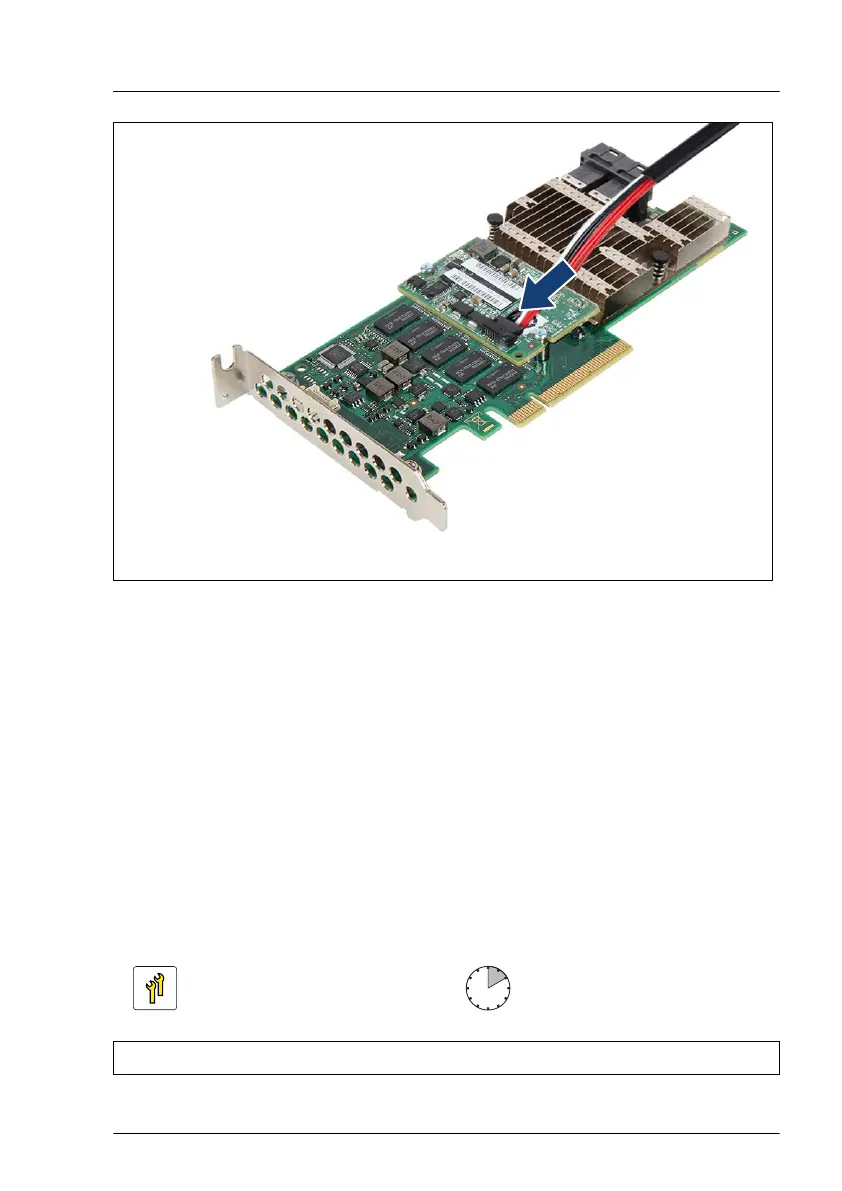

Figure 138: Connecting the FBU cable
▶
Connect the FBU cable to the TFM.
▶
Install the expansion card, see "Installing an expansion card" on page
229
.
Concluding steps
▶
"Reassembling" on page 51.
▶
"Connecting the power cord" on page 56.
▶
"Switching on the server" on page 57.
9.5.5 Removing a TFM
Upgrade and Repair Unit
(URU)
Hardware: 10 minutes
Tools: Phillips PH1 / (+) No. 1 screw driver
Expansion cards and backup units
RX2520 M5 Upgrade and Maintenance Manual 243
