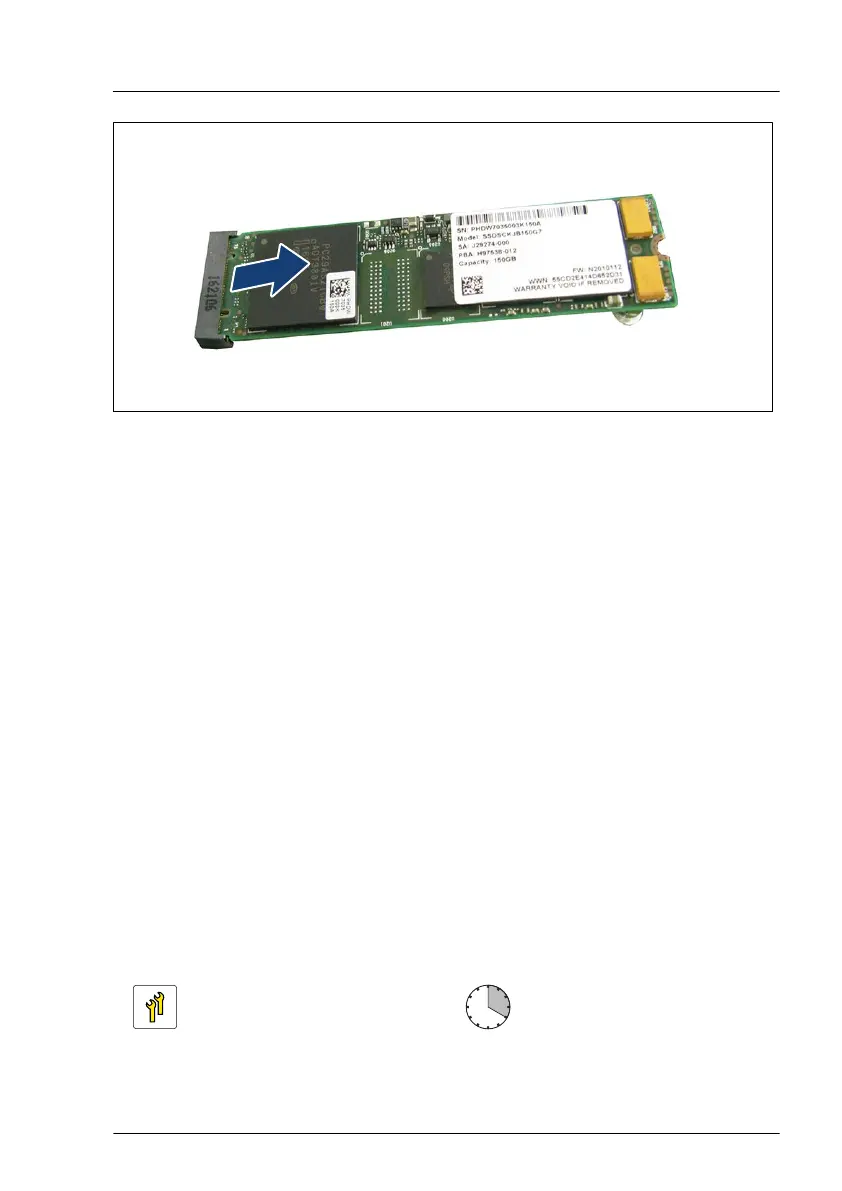

Figure 270: Removing the M.2 SSD (B)
▶
Pull the M.2 SSD out of its slot.
If no new M.2 SSD will be installed:
▶
Fasten the screw to the corresponding hexagon stand-off (see orange
circles in
Figure 265).
Concluding steps
▶
If applicable, "Installing the expansion card" on page 231.
▶
"Installing the crossbar" on page 63.
▶
"Installing the air duct" on page 59.
▶
"Reassembling" on page 51.
▶
"Connecting the power cord" on page 56.
▶
"Switching on the server" on page 57.
15.6.4 Replacing an M.2 SSD
Upgrade and Repair Unit
(URU)
Hardware: 5 minutes
Software: 15 minutes
System board and components
RX2520 M5 Upgrade and Maintenance Manual 411
