Removing the SAS expander board

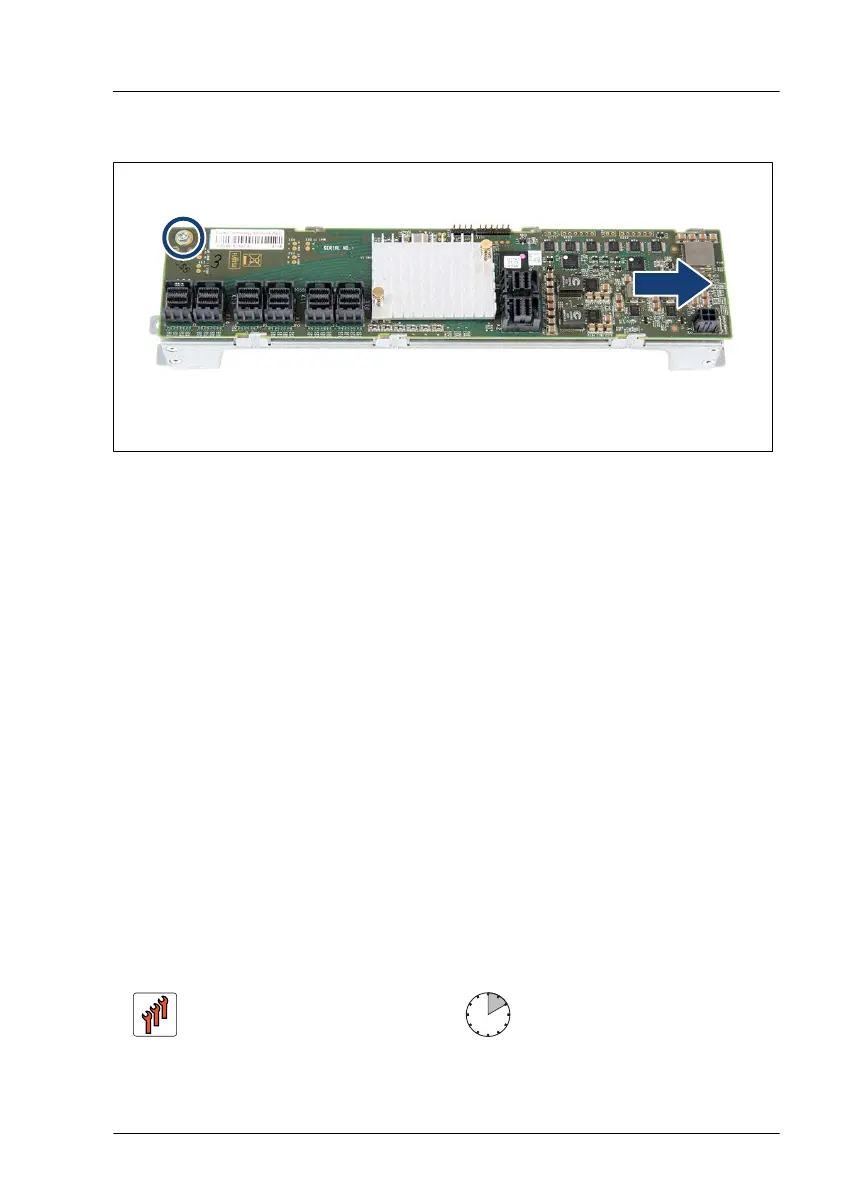

Figure 105: Removing the SAS expander board
▶
Remove one screw (see circle).
▶
Push the SAS expander board in the direction of the arrow
.
▶
T
ake off the SAS expander board from the SAS expander board holder.
Concluding steps
▶
"Installing the fan holder" on page 61.
▶
"Installing the air duct" on page 59.
▶
"Reassembling" on page 51.
▶
"Connecting the power cord" on page 56.
▶
"Switching on the server" on page 57.
▶
"Resuming BitLocker functionality" on page 88.
7.5.13 Replacing the SAS expander board
Field Replaceable Unit
(FRU)
Hardware: 10 minutes
Hard disk drive (HDD) / solid state disk (SSD)
RX2520 M5 Upgrade and Maintenance Manual 199
