15.7 Dual microSD 64GB Enterprise
15.7.1 Installing the Dual microSD 64GB Enterprise
Upgrade and Repair Unit
(URU)
Hardware: 5 minutes
Software: 15 minutes
Tools: tool-less
Preliminary steps
▶
"Shutting down the server" on page 45
.
▶
"Disconnecting the power cord" on page 46.
▶
"Getting access to the component" on page 47.
▶
"Removing the air duct" on page 58.
Installing the Dual microSD 64GB Enterprise

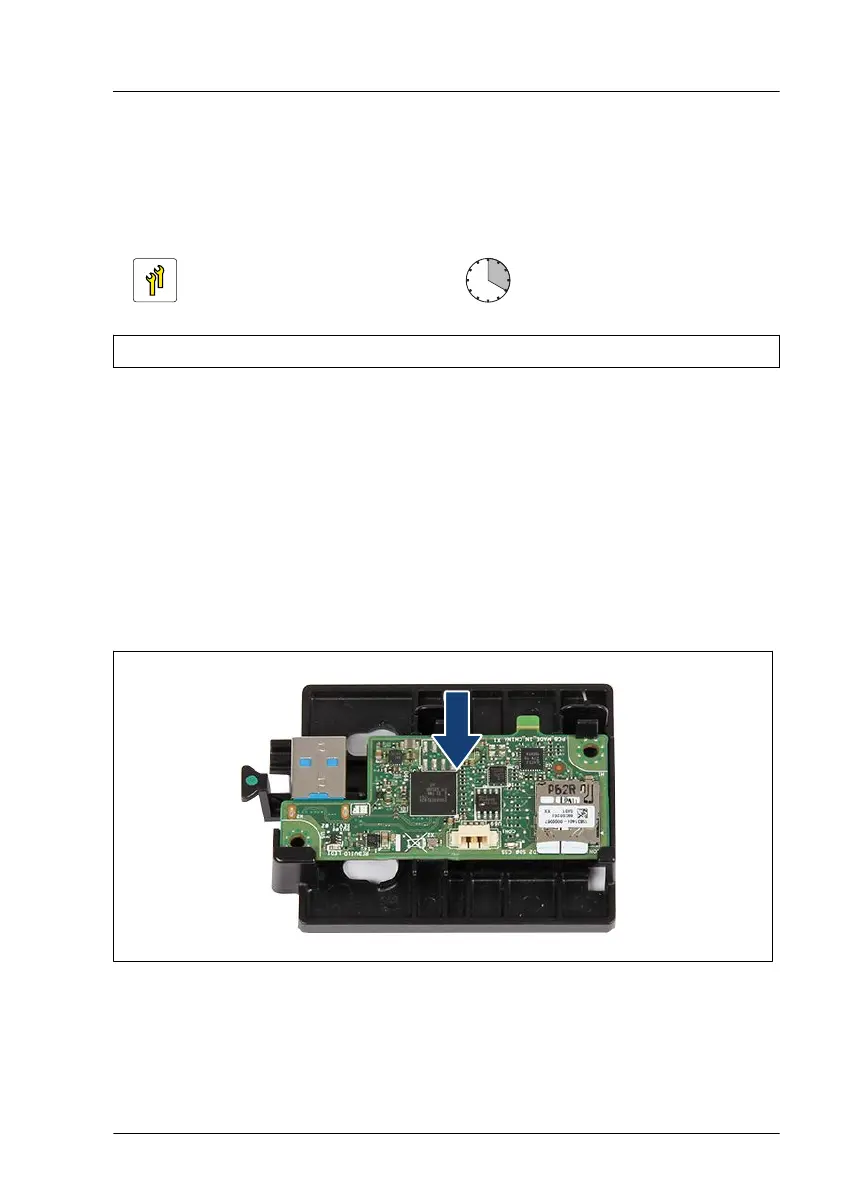

Figure 271: Inserting the Dual microSD 64GB Enterprise into the holder
▶
Insert the Dual microSD 64GB Enterprise into a slight angle into the holder.
▶
Push down the Dual microSD 64GB Enterprise until it clicks in.
System board and components
RX2520 M5 Upgrade and Maintenance Manual 413
