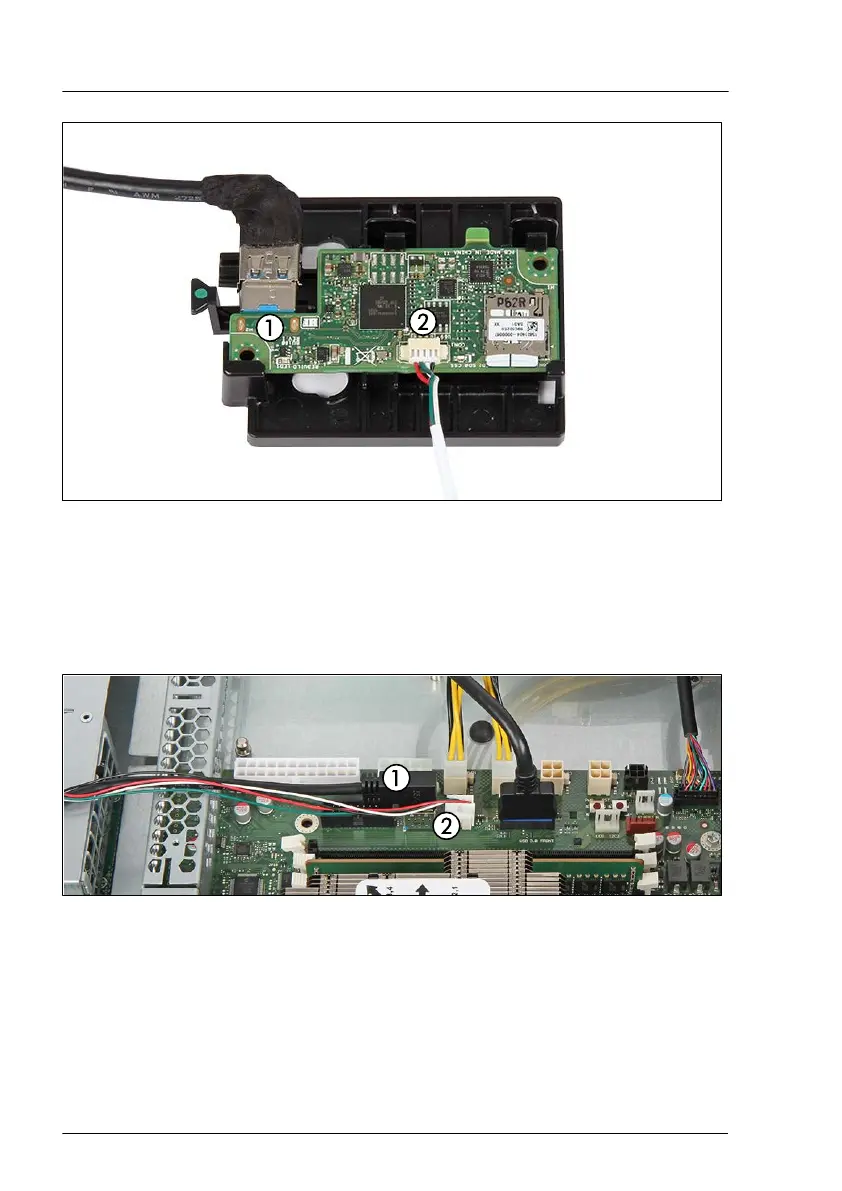

Figure 272: Connecting cables to the Dual microSD 64GB Enterprise
▶
Connect the two cables to the Dual microSD Enterprise:
1 Dual microSD 64GB Enterprise USB cable
2 Dual microSD 64GB Enterprise cable
Figure 273: Connecting cables to the system board
▶
Connect the two cables to the system board:
1 Dual microSD 64GB Enterprise USB cable to connector "USB3.0 INT
1"
2 Dual microSD 64GB Enterprise cable to connector "ROC"
System board and components
414 Upgrade and Maintenance Manual RX2520 M5
