16.1.3 Server interior

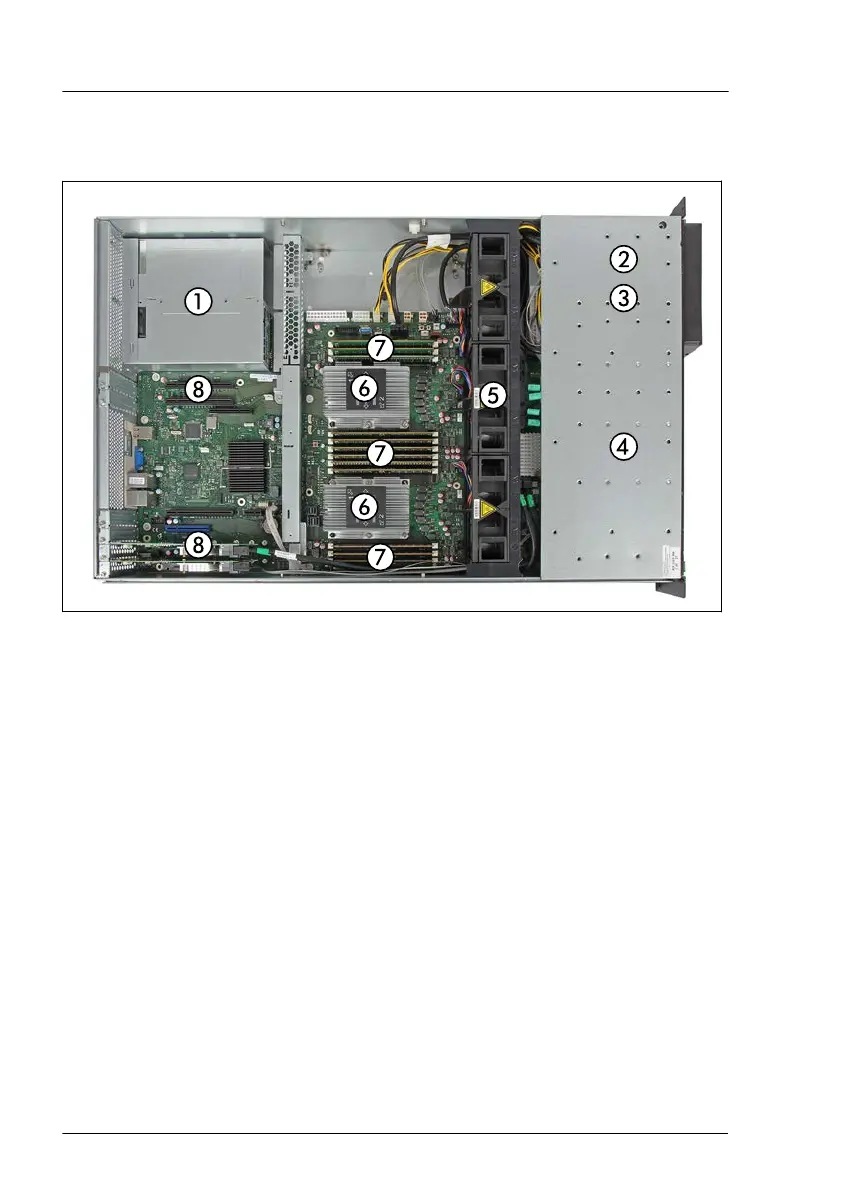

Figure 286: Interior
1 Up to 2 PSUs / dummy cover
2 Front panel module / dummy cover
3
ODD / dummy cover
4 HDD/SSD modules / dummy modules
5 Fan modules
6 CPUs
7 Main memory
8 PCI slots
The ODD (3) is an option.
3.5-inch HDD subsystem: up to 12 3.5-inch SAS/SAT
A HDD modules (4) can
be installed.
2.5-inch HDD/SSD subsystem: up to eight, 16 or 24 2.5-inch SAS/SATA
HDD/SSD modules (4) can be installed.
Appendix A
436 Upgrade and Maintenance Manual RX2520 M5
