4.10.2 Installing the crossbar

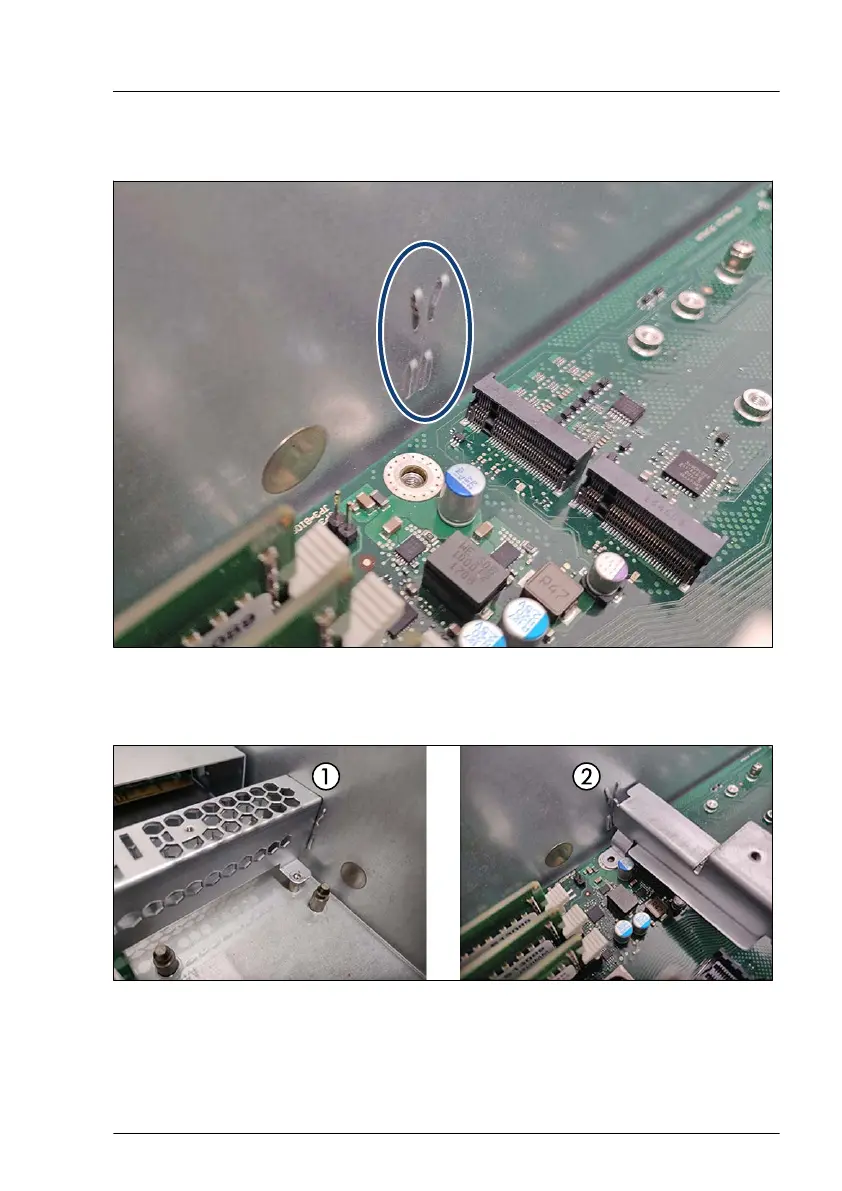

Figure 16: Guides for the crossbar
▶
T
ake note of the guides for the crossbar on both sides of the chassis.
Figure 17: Guides on the crossbar - both sides
▶
Insert the crossbar in the guides on both sides.
Basic hardware procedures
RX2520 M5 Upgrade and Maintenance Manual 63
