Fujitsu PRIMERGY RX2520 M5

7RX2520 M5

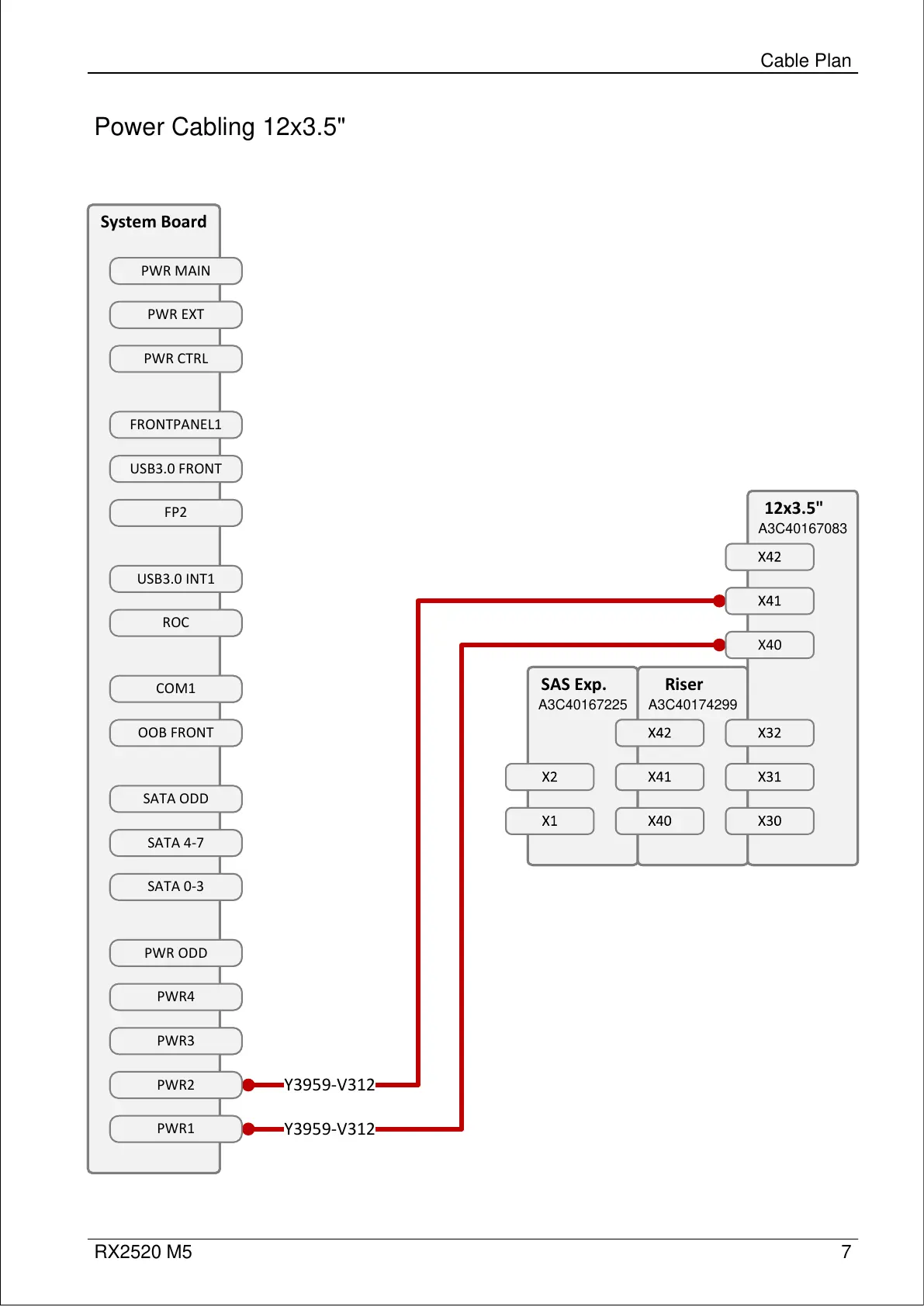

Power Cabling 12x3.5"
Cable Plan
SAS Exp.
A3C40167225
SAS Exp.
A3C40167225
Riser
A3C40174299
Riser
A3C40174299
Y3959-V312
Y3959-V312
12x3.5"
X40
A3C40167083
12x3.5"
X40
A3C40167083
System Board
PWR MAIN
PWR EXT
PWR CTRL
USB3.0 FRONT
FP2
USB3.0 INT1
ROC
COM1
OOB FRONT
SATA 4-7
SATA 0-3
PWR ODD
PWR4
PWR3
PWR2
FRONTPANEL1
SATA ODD
PWR1
System Board
PWR MAIN
PWR EXT
PWR CTRL
USB3.0 FRONT
FP2
USB3.0 INT1
ROC
COM1
OOB FRONT
SATA 4-7
SATA 0-3
PWR ODD
PWR4
PWR3
PWR2
FRONTPANEL1
SATA ODD
PWR1
