Fujitsu PRIMERGY RX2520 M5

24RX2520 M5

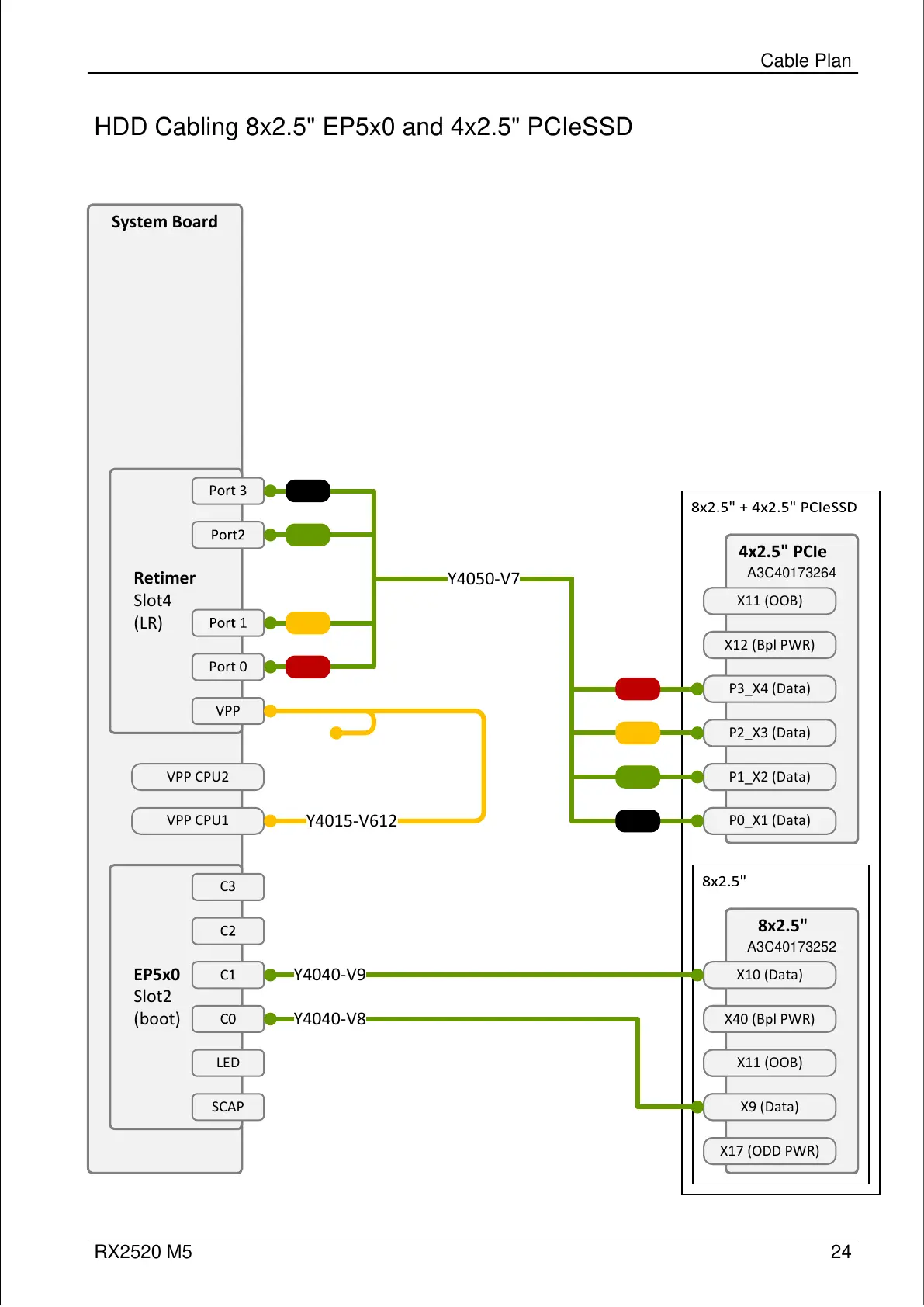

HDD Cabling 8x2.5" EP5x0 and 4x2.5" PCIeSSD
Cable Plan
8x2.5"
X40 (Bpl PWR)
X11 (OOB)
X9 (Data)
A3C40173252
X17 (ODD PWR)
X10 (Data)
8x2.5"
X40 (Bpl PWR)
X11 (OOB)
X9 (Data)
A3C40173252
X17 (ODD PWR)
X10 (Data)
4x2.5" PCIe
X12 (Bpl PWR)
P3_X4 (Data)
P2_X3 (Data)
A3C40173264
P1_X2 (Data)
X11 (OOB)
P0_X1 (Data)
4x2.5" PCIe
X12 (Bpl PWR)
P3_X4 (Data)
P2_X3 (Data)
A3C40173264
P1_X2 (Data)
X11 (OOB)
P0_X1 (Data)
System Board
Retimer
Slot4
(LR)
Port 3
Port 0
VPP
VPP CPU1
VPP CPU2
Y4050-V7
Y4015-V612
EP5x0
Slot2
(boot)
C3
LED
SCAP
Y4040-V9
Y4040-V8
