Example: EP4x0i

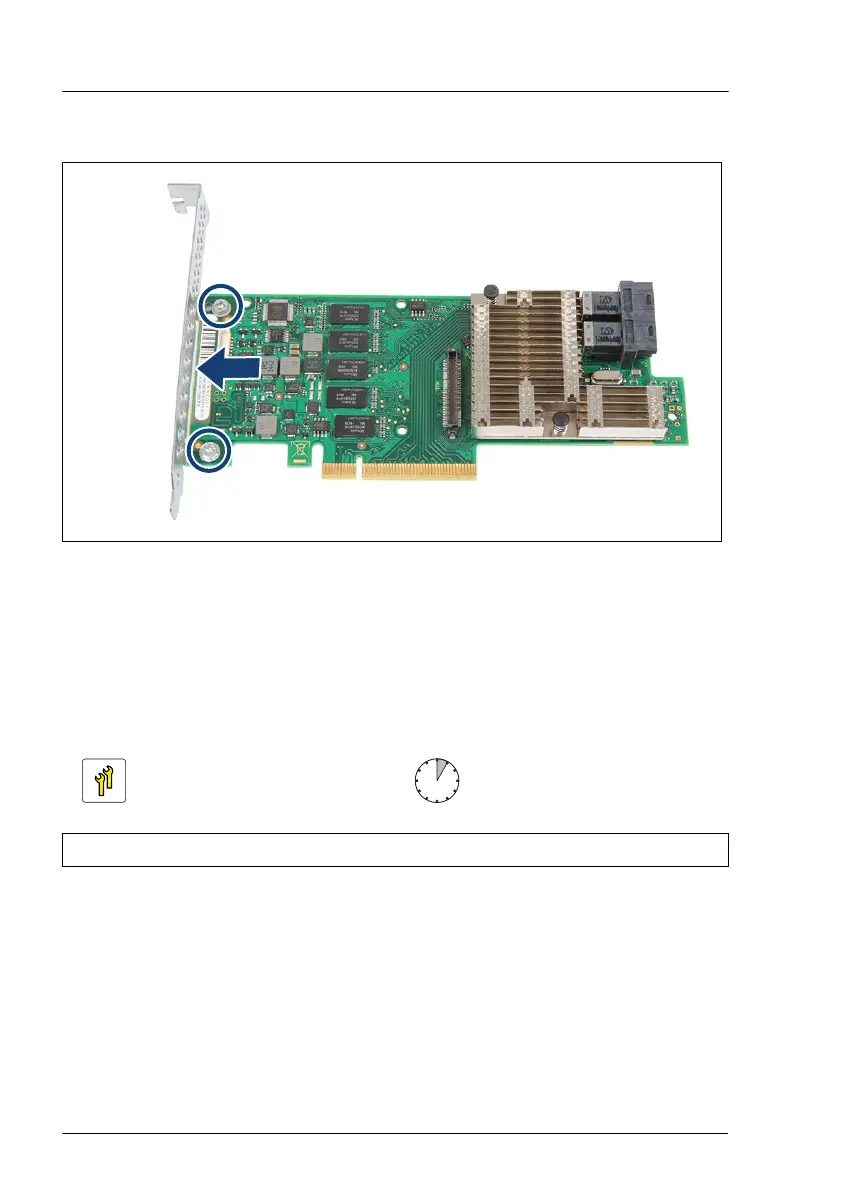

Figure 117: Placing the slot bracket
▶
Place the controller on the slot bracket.
▶
Secure the slot bracket to the expansion card with two screws (see circles).
9.3.2
Removing slot brackets
Upgrade and Repair Unit
(URU)
Hardware: 5 minutes
Tools: Phillips PH2 / (+) No. 2 screw driver
Removing a slot bracket
▶
Remove the two screws.
▶
Remove the controller from the mounting tabs on the slot bracket.
Expansion cards and backup units
220 Upgrade and Maintenance Manual RX2520 M5
