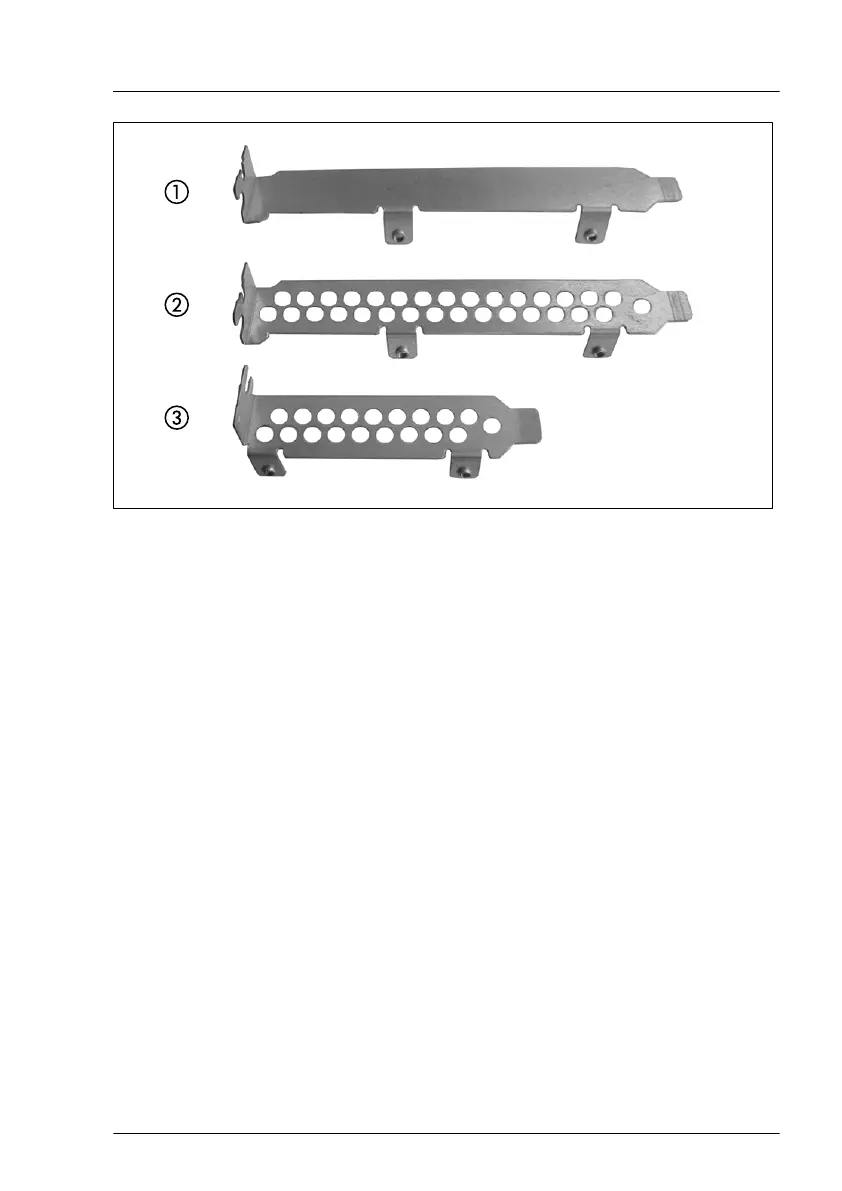

Figure 116: Perforated and non-perforated slot brackets
1 Full height bracket non-perforated
2 Full height bracket perforated
3
Low profile bracket perforated
Installing a slot bracket
▶
Place the controller on the mounting tabs on the slot bracket.
▶
Fasten the slot bracket to the controller with two screws.
Expansion cards and backup units
RX2520 M5 Upgrade and Maintenance Manual 219
