4.5.2 Installing the top cover

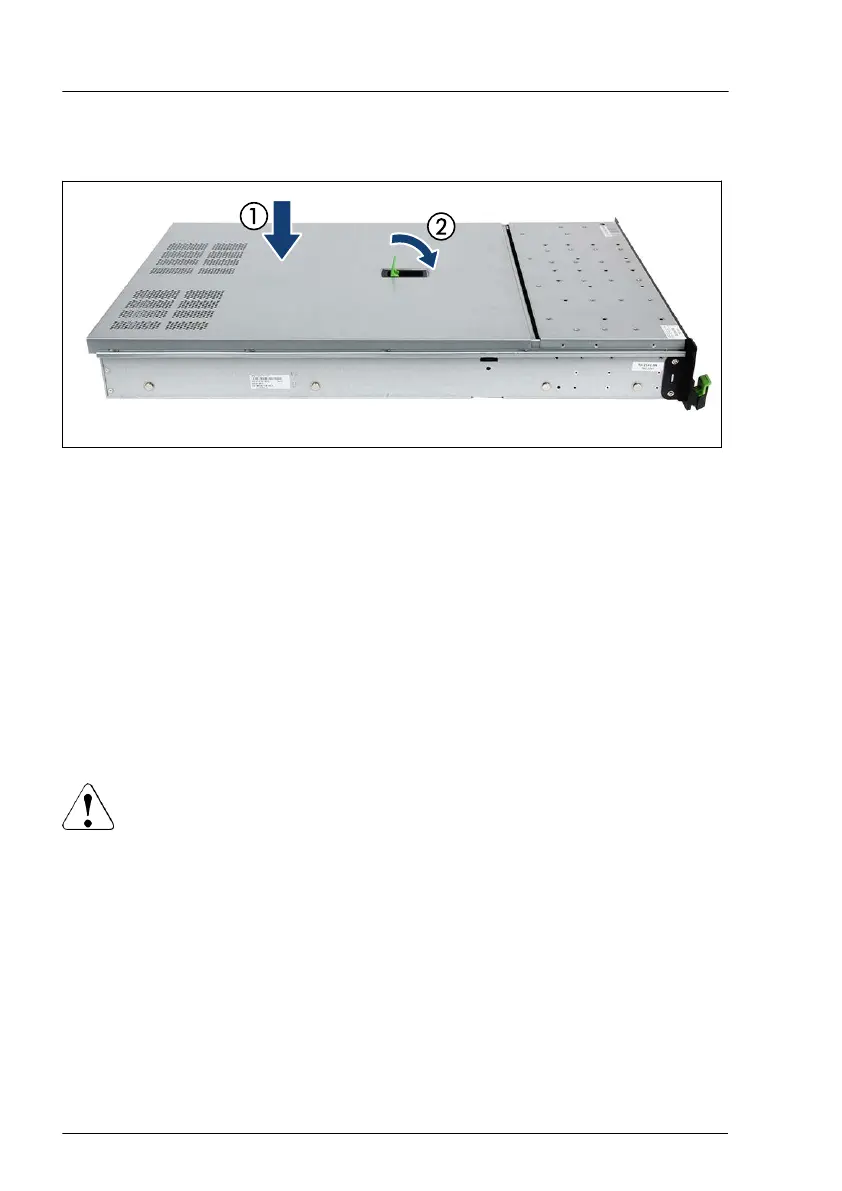

Figure 6: Installing the top cover
▶
Open the locking lever on the top cover.
▶
Fit the top cover on the chassis, aligning it according to the edge guide
marking on the upper server surface.
▶
Lower the top cover onto the chassis (1).
▶
Close the locking lever on the top cover
. This will slide the top cover shut
engaging the locking mechanism (2).
4.5.3 Installing the server in the rack
CAUTION
At least two people are needed to position the server on the rack rails.
(For Japan, see "安全上のご注意".)
Basic hardware procedures
52 Upgrade and Maintenance Manual RX2520 M5
