Removing the FBU with the holder

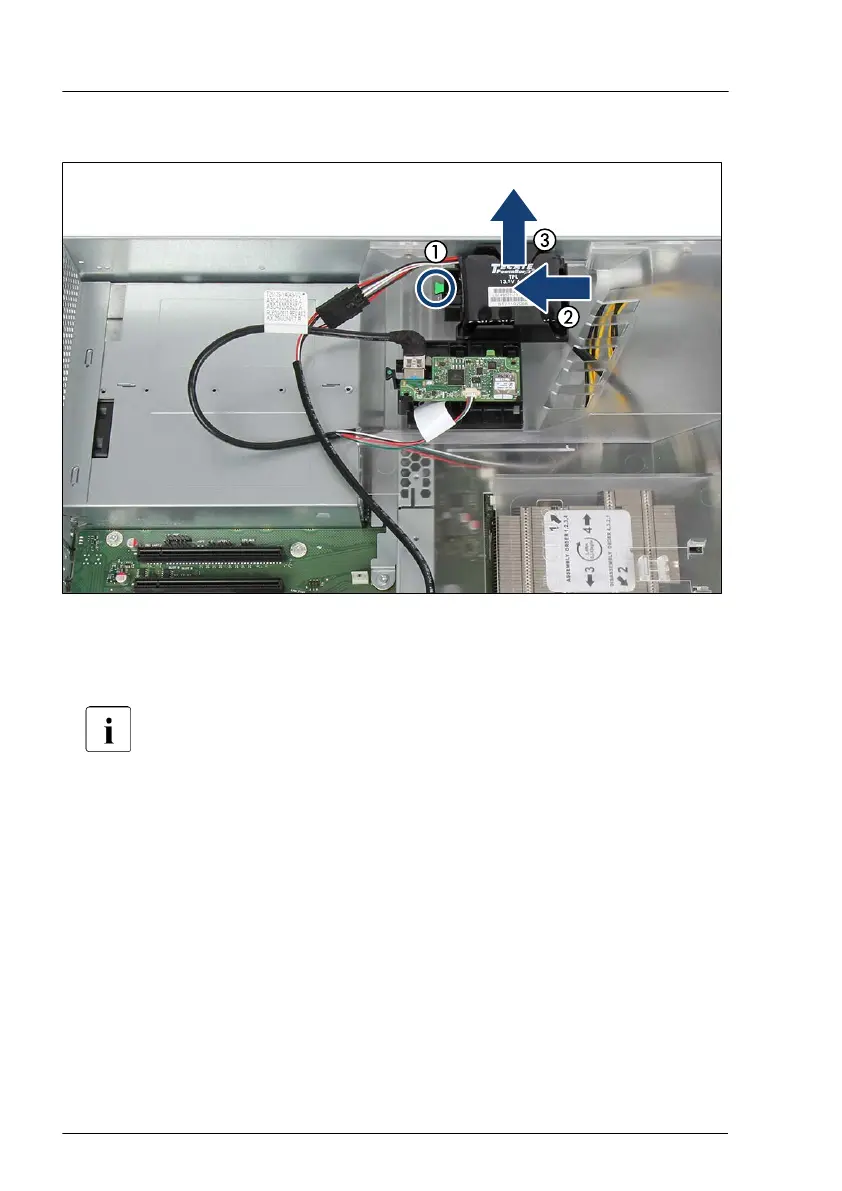

Figure 146: Removing the FBU with the holder
▶
Lift up the green locking handle on the FBU holder (1) while sliding the FBU
holder to the left as far as it will go (2).
After that, the shoulder screw caps on the air duct will rest in the wide
ends of the keyhole slots on the holder.
▶
Lift the holder from the air duct (3).
Expansion cards and backup units
252 Upgrade and Maintenance Manual RX2520 M5
