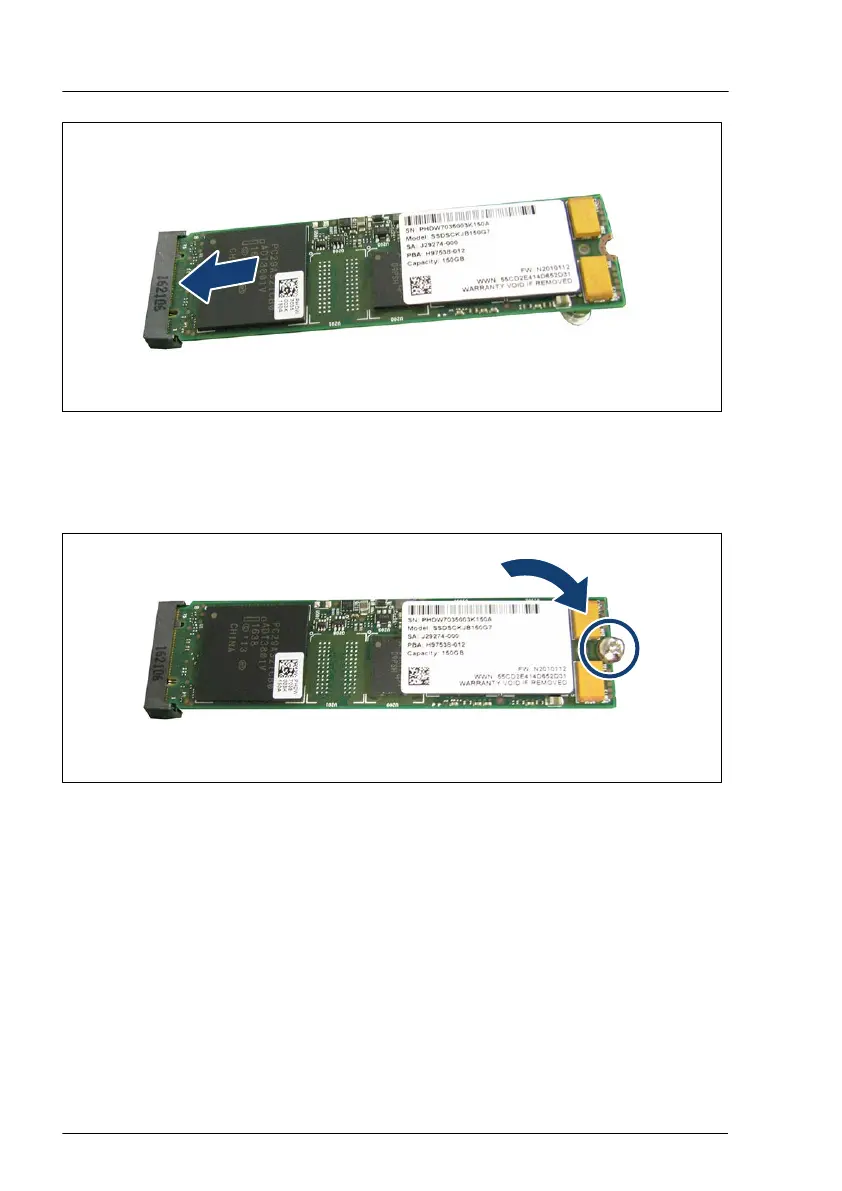

Figure 267: Installing the M.2 SSD
▶
With the label facing up, insert the M.2 SSD into the M.2 slot at a slight
angle.
Figure 268: Fastening the M.2 SSD
▶
Fasten the M.2 SSD with the screw (see circle).
Concluding steps
▶
If applicable, "Installing the expansion card" on page
231
.
▶
"Installing the crossbar" on page 63.
▶
"Installing the air duct" on page 59.
▶
"Reassembling" on page 51.
