Removing the expansion card
▶
If applicable, disconnect internal cables from the expansion card.
▶
If applicable, remove the SFP+ transceiver modules, see "Removing SFP+
transceiver modules" on page
226.

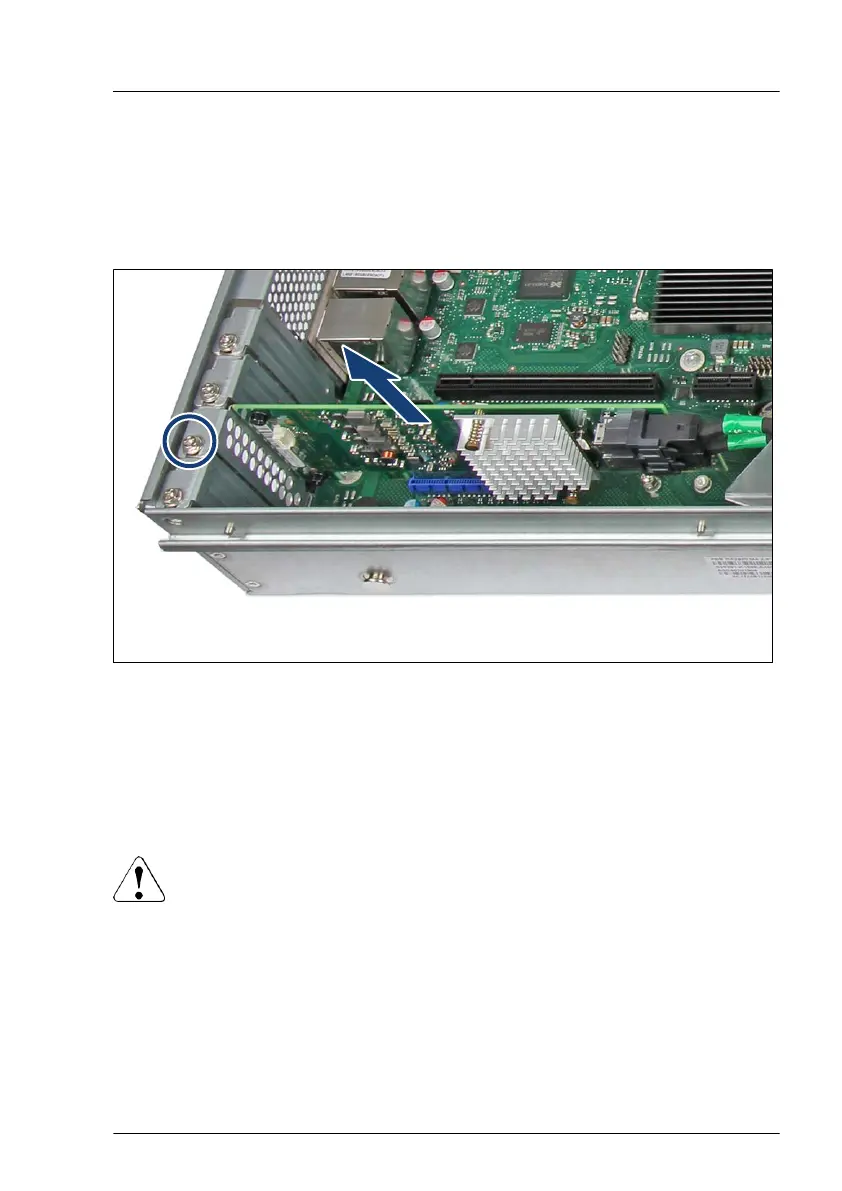

Figure 134: Removing the expansion card
▶
Remove the screw (see circle).
▶
Carefully remove the expansion card from its slot.
Installing the slot cover
CAUTION
▶
If the expansion card is removed and not replaced with a new one,
the slot cover must be reinstalled due to cooling, to comply with
applicable EMC regulations and to protect against fire.
Expansion cards and backup units
RX2520 M5 Upgrade and Maintenance Manual 237
