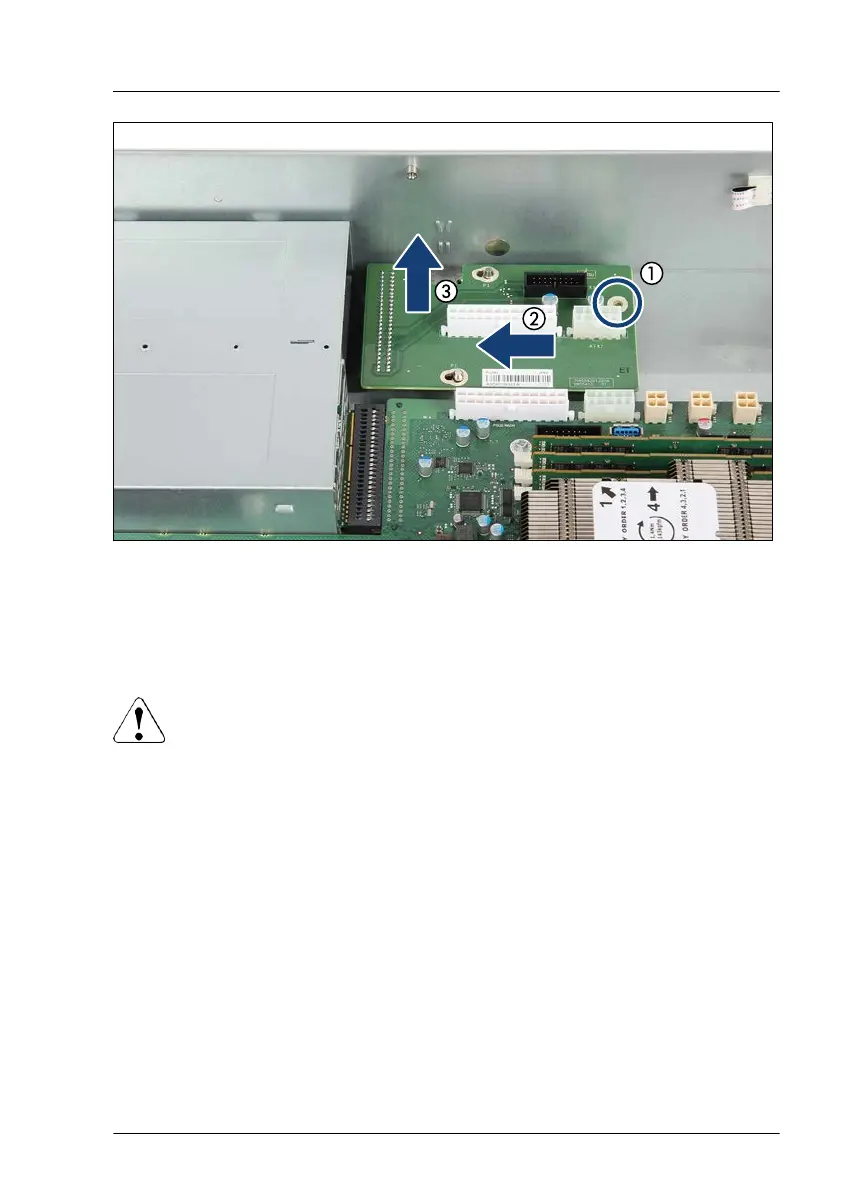

Figure 36: Removing the power distribution board
▶
Remove the screw from the power distribution board (1).
▶
Push the power distribution board in direction of the arrow (2) to unlock the
locking mechanism and remove it (3).
CAUTION
▶
Do not install a PSU in bay 2, if the power distribution board is not
installed.
Concluding steps
▶
"Installing the crossbar" on page
63
.
▶
"Installing the air duct" on page 59.
▶
"Reassembling" on page 51.
▶
"Connecting the power cord" on page 56.
▶
"Switching on the server" on page 57.
▶
"Resuming BitLocker functionality" on page 88.
Power supply unit (PSU)
RX2520 M5 Upgrade and Maintenance Manual 119
