Preliminary steps
No steps needed.
Installing a 3.5-inch HDD in a 3.5-inch installation frame

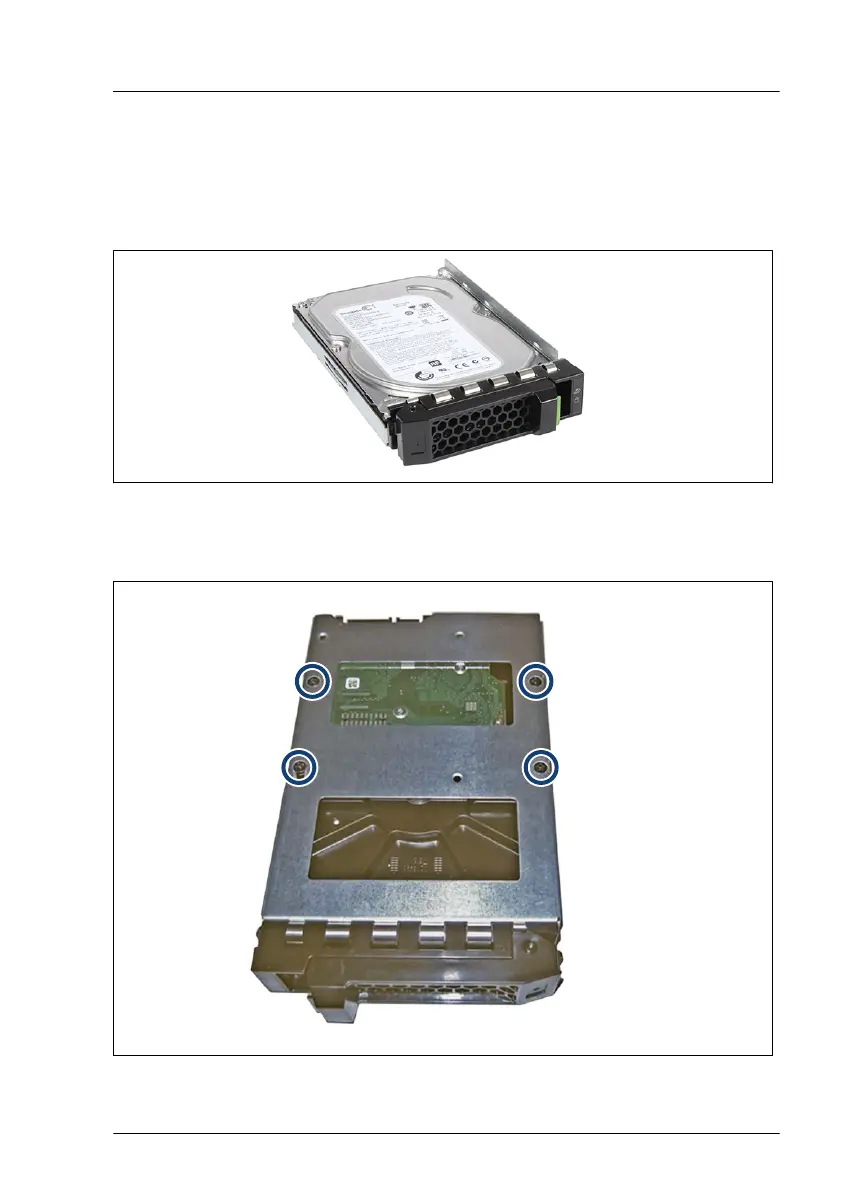

Figure 41: Installing the 3.5-inch HDD in the 3.5-inch installation frame (A)
▶
Lay the 3.5-inch HDD into the 3.5-inch installation frame as shown.
Figure 42: Installing the 3.5-inch HDD in the 3.5-inch installation frame (B)
Hard disk drive (HDD) / solid state disk (SSD)
RX2520 M5 Upgrade and Maintenance Manual 129
