Removing the defective connector card

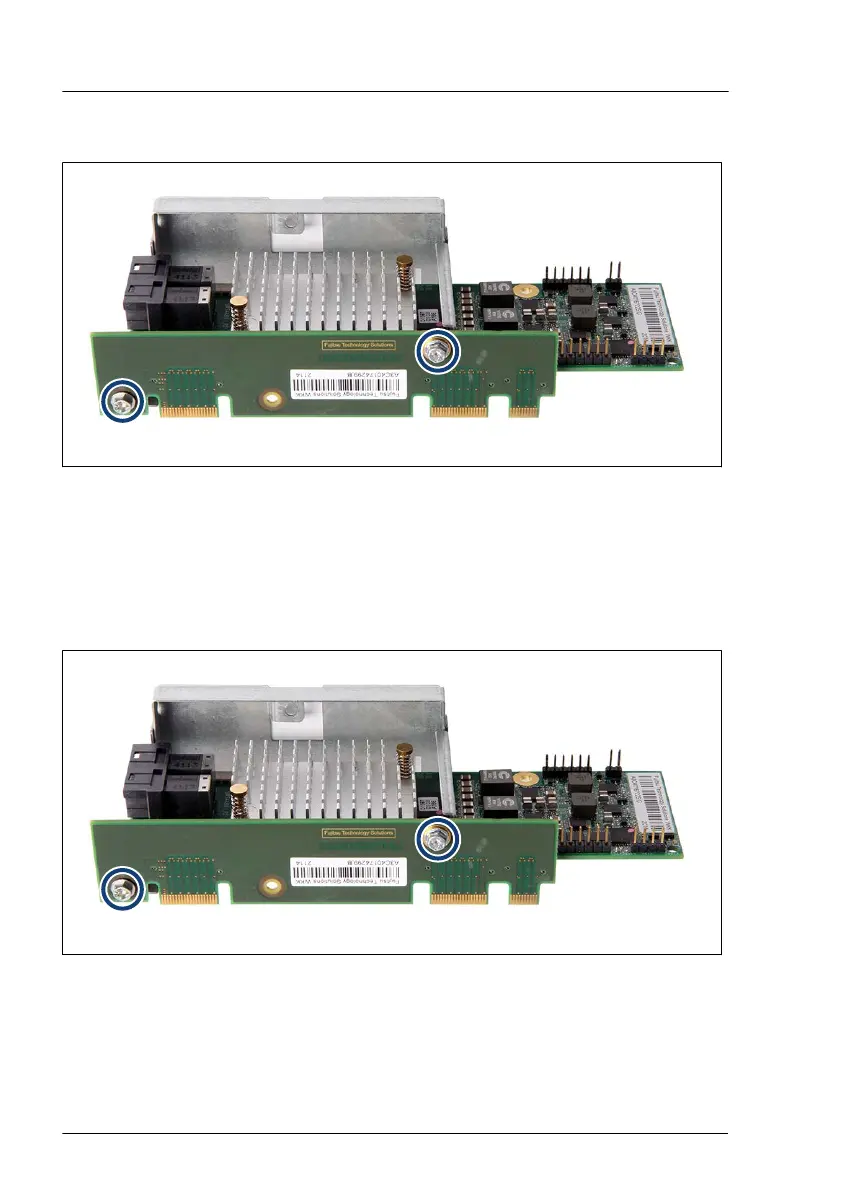

Figure 79: Removing the connector card
▶
Remove the two screws (see circles).
▶
Disconnect the connector card from the SAS expander board.
Installing the new connector card
Figure 80: Installing the connector card
Hard disk drive (HDD) / solid state disk (SSD)
166 Upgrade and Maintenance Manual RX2520 M5
