If the PCIe SSD module is controlled by a RAID controller of the PRAID
EP5x0i family, the PCIe SSD module can be installed during operation
(hot-plug), see "Installing 2.5-inch HDD/SSD modules" on page 172.
Preliminary steps
▶
Locate the correct drive bay, see "Overview of configurations" on page
167.
▶
Depending on your OS (see the "NVMe User Guide"): "Shutting down the
server" on page 45.
Removing a 2.5-inch HDD/SSD dummy module

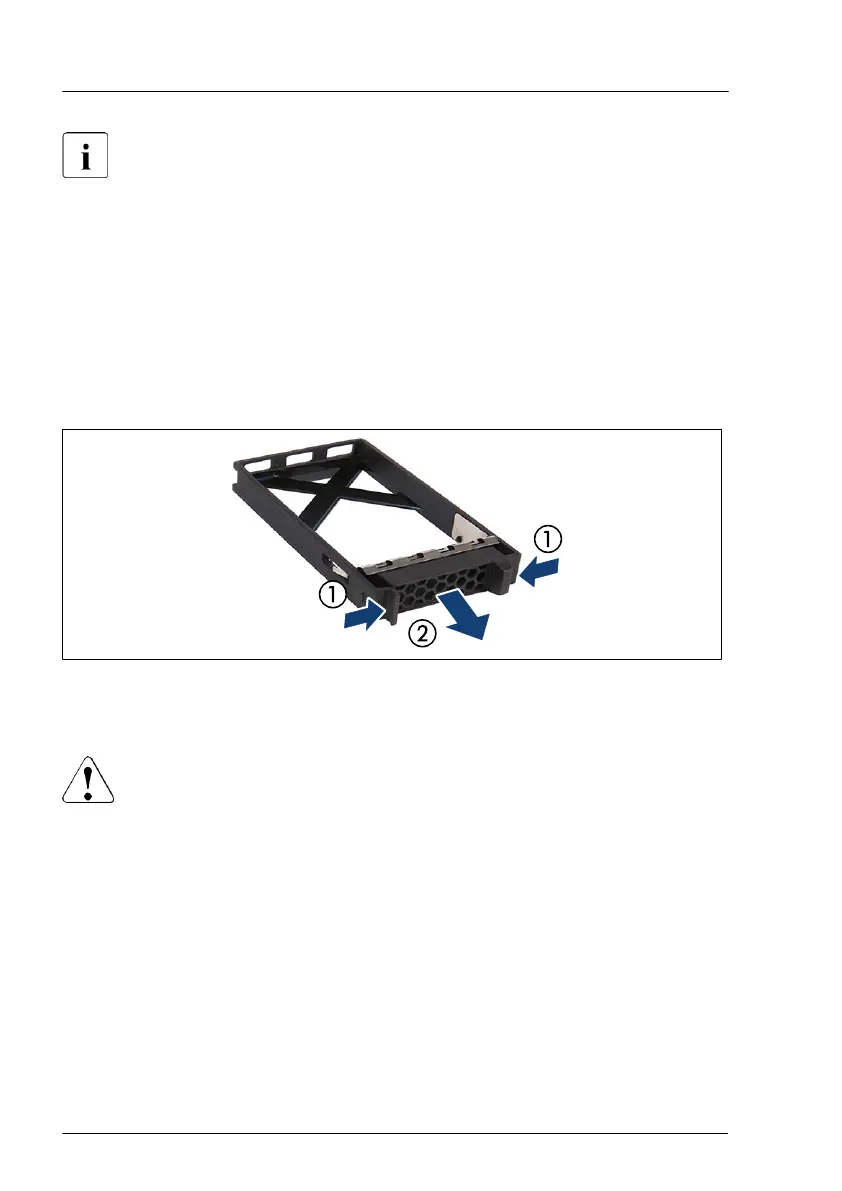

Figure 90: Removing a 2.5-inch HDD/SSD dummy module
▶
Press both tabs together (1) and pull the dummy module out of its bay
(2).
CAUTION
▶
Keep the dummy module for future use.
▶
Always replace dummy modules into unused HDD/SSD bays to
comply with applicable EMC regulations and satisfy cooling
requirements.
Hard disk drive (HDD) / solid state disk (SSD)
180 Upgrade and Maintenance Manual RX2520 M5
