Removing a 2.5-inch PCIe SSD module

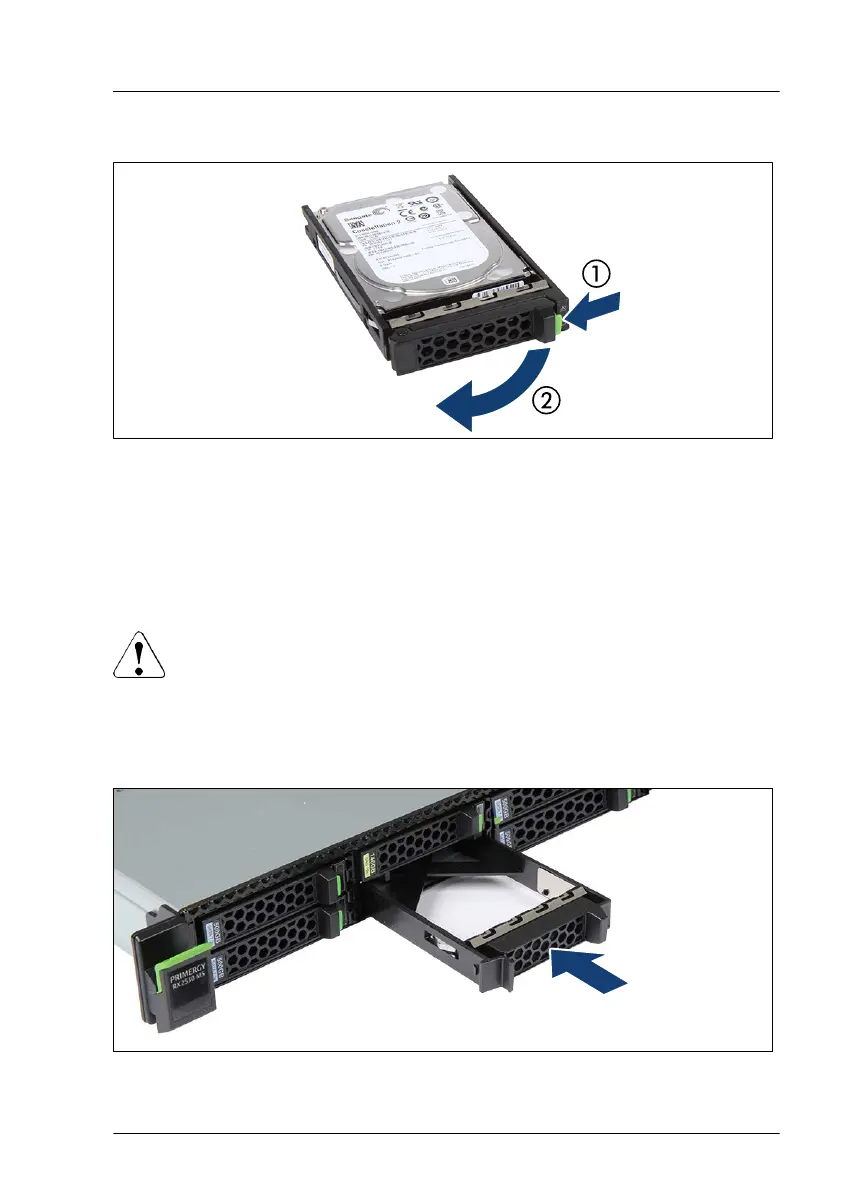

Figure 93: Opening the locking lever
▶
Pinch the green locking clips (1) and open the locking lever (2).
▶
Pull the PCIe SSD module completely out of its bay
.
Installing a 2.5-inch dummy module
CAUTION
▶
If the removed HDD/SSD module is not replaced immediately,
always replace a dummy module into the unused HDD/SSD bay to
comply with applicable EMC regulations and satisfy cooling
requirements.
Figure 94: Installing the 2.5-inch dummy module
Hard disk drive (HDD) / solid state disk (SSD)
RX2520 M5 Upgrade and Maintenance Manual 183
