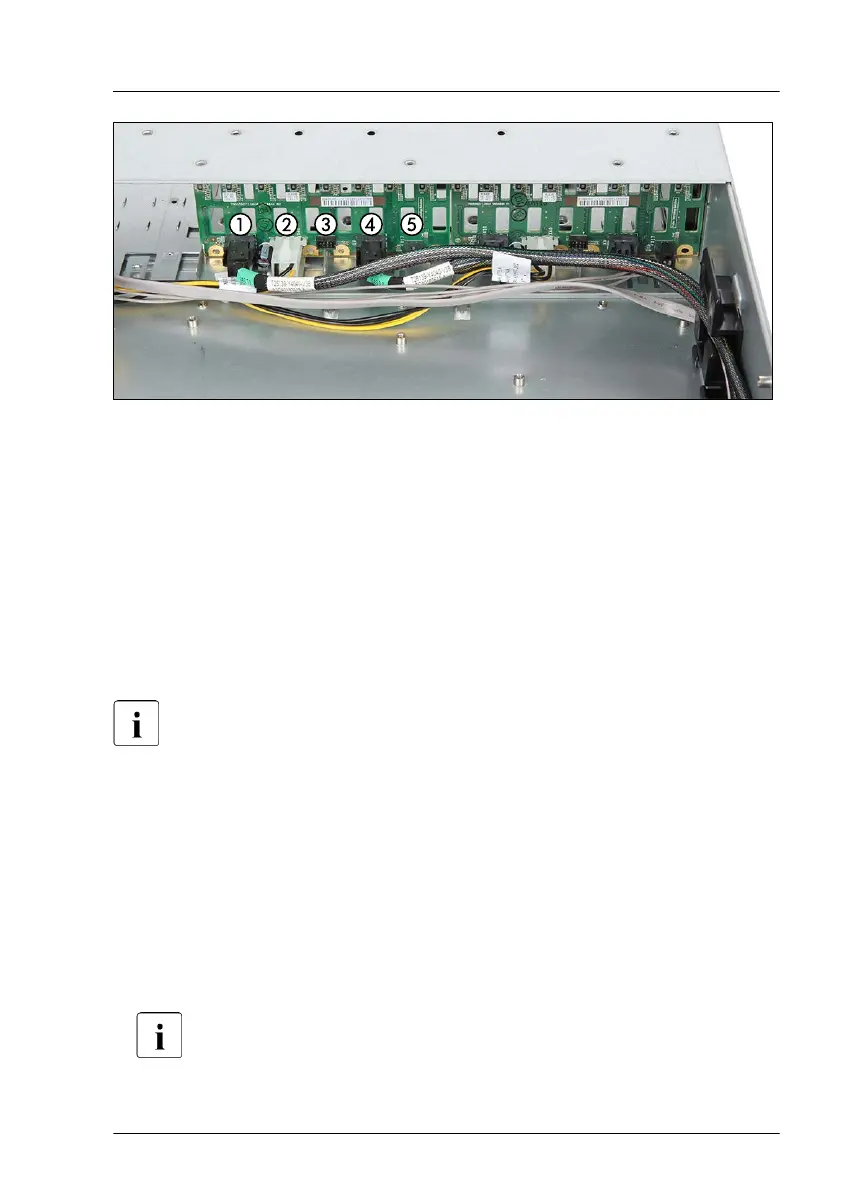

Figure 100: Connecting cables to the backplane (example 16x 2.5-inch HDDs)
▶
Connecting following cables:
1 Corresponding SAS cable to connector "X10"
2 Power cable C11 to connector "X40"
3 If applicable, OOB cable C7 to connector "X11"
4 Corresponding SAS cable to connector "X9"
5 ODD power cable (first backplane) and if applicable, SAS expander
board power cable (second backplane) to connector "X17"
For the cable plan, see "Appendix B" on page 463
.
Concluding steps
▶
If applicable, install the SAS expander board holder, see "Installing the SAS
expander board" on page
193.
▶
"Installing the fan holder" on page 61.
▶
"Installing the air duct" on page 59.
▶
Insert all HDD/SSD modules, see "Installing 2.5-inch HDD/SSD modules"
on page 172.
Ensure that you install the HDD module in the bay it was located
before the HDD backplane replacement.
Hard disk drive (HDD) / solid state disk (SSD)
RX2520 M5 Upgrade and Maintenance Manual 189
