At a slight angle install the backplane in the three recesses (see Figure 106)
at the top.
▶
Fold back the backplane on the bottom (1) until it rests in the hook (2).
Connecting the 4x 2.5-inch PCIe SSD backplane

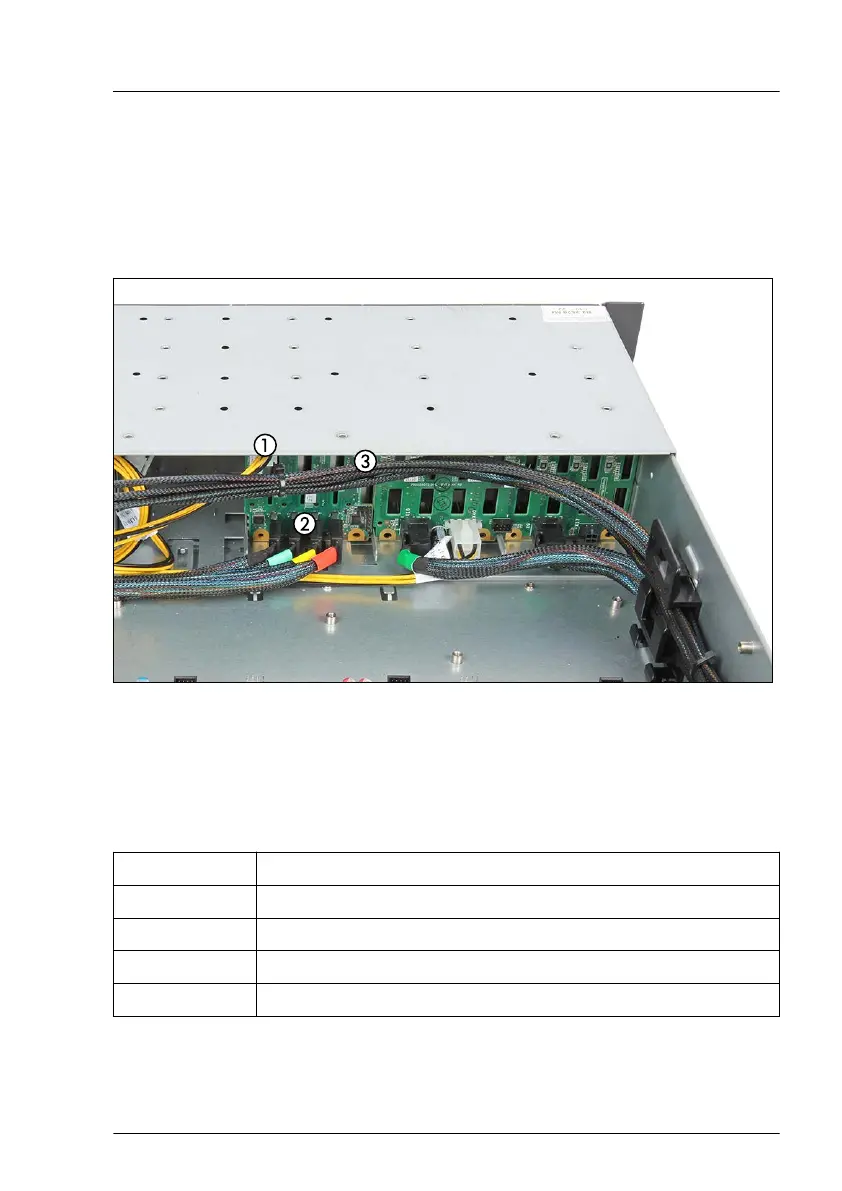

Figure 108: Connecting cables to the 2.5-inch PCIe SSD backplane
▶
Connect the cables to the PCIe SSD backplane:
–
(1) Power cable to connector "X12"
–
(2) Color-coded Oculink cable:
Color Connector on PCIe SSD backplane
red P0_X1
yellow P0_X2
green P0_X3
black P0_X4
–
(3) If applicable, OOB cable to connector "X11"
Hard disk drive (HDD) / solid state disk (SSD)
RX2520 M5 Upgrade and Maintenance Manual 203
