Installing the new fan module

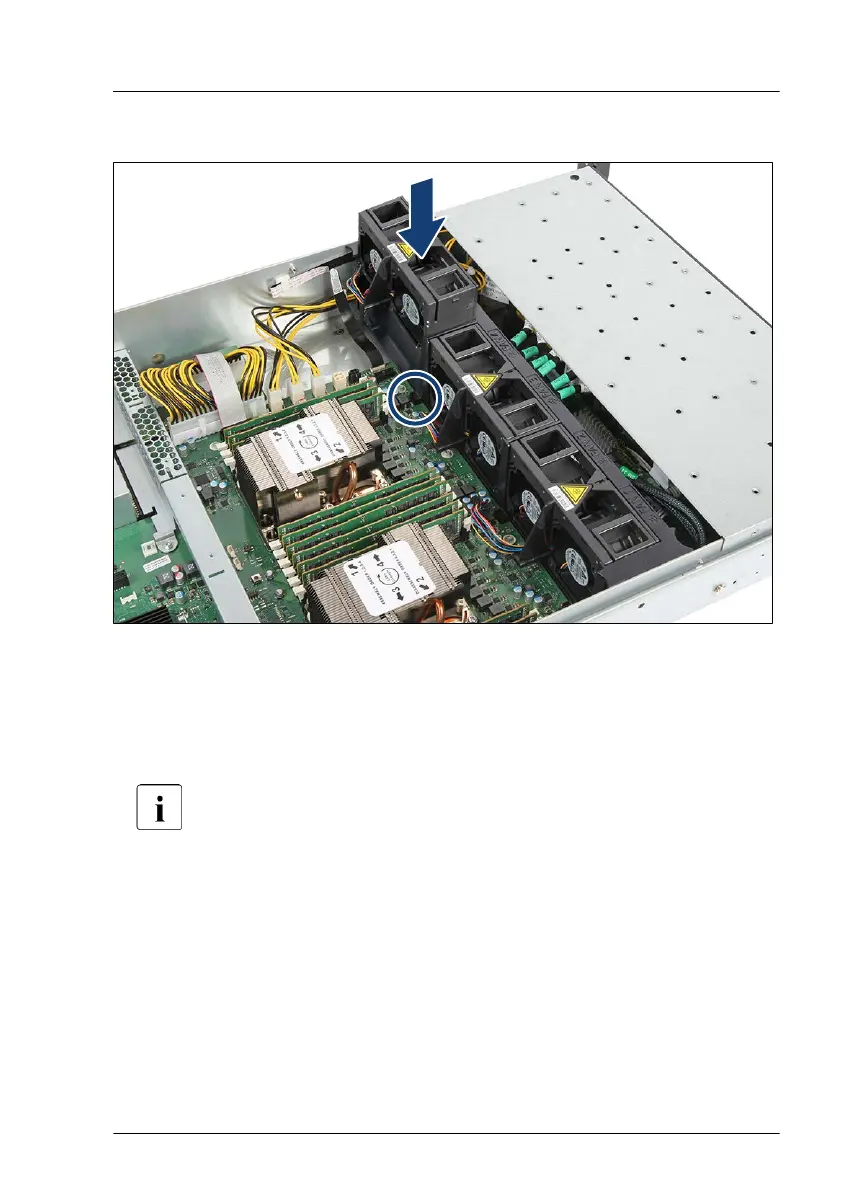

Figure 113: Installing the fan module
▶
Insert the fan module as shown.
▶
Press down the fan module until it locks.
▶
Connect the corresponding fan cable (see circle), see T
able 3
.
Pay attention to the connector orientation before connect the
connector onto the system board. Do not press the fan connector to
strong, otherwise the top plastic plate can be damaged.
Concluding steps
▶
"Installing the air duct" on page 59.
▶
"Reassembling" on page
51.
▶
"Connecting the power cord" on page 56.
Fans
RX2520 M5 Upgrade and Maintenance Manual 213
