Connect the cable end on the FBU to the FBU cable as shown.
Installing the FBU with the holder
Note the positions of the shoulder screw caps on the air duct 1 and
keyhole slots on the FBU holder, see Figure 141.

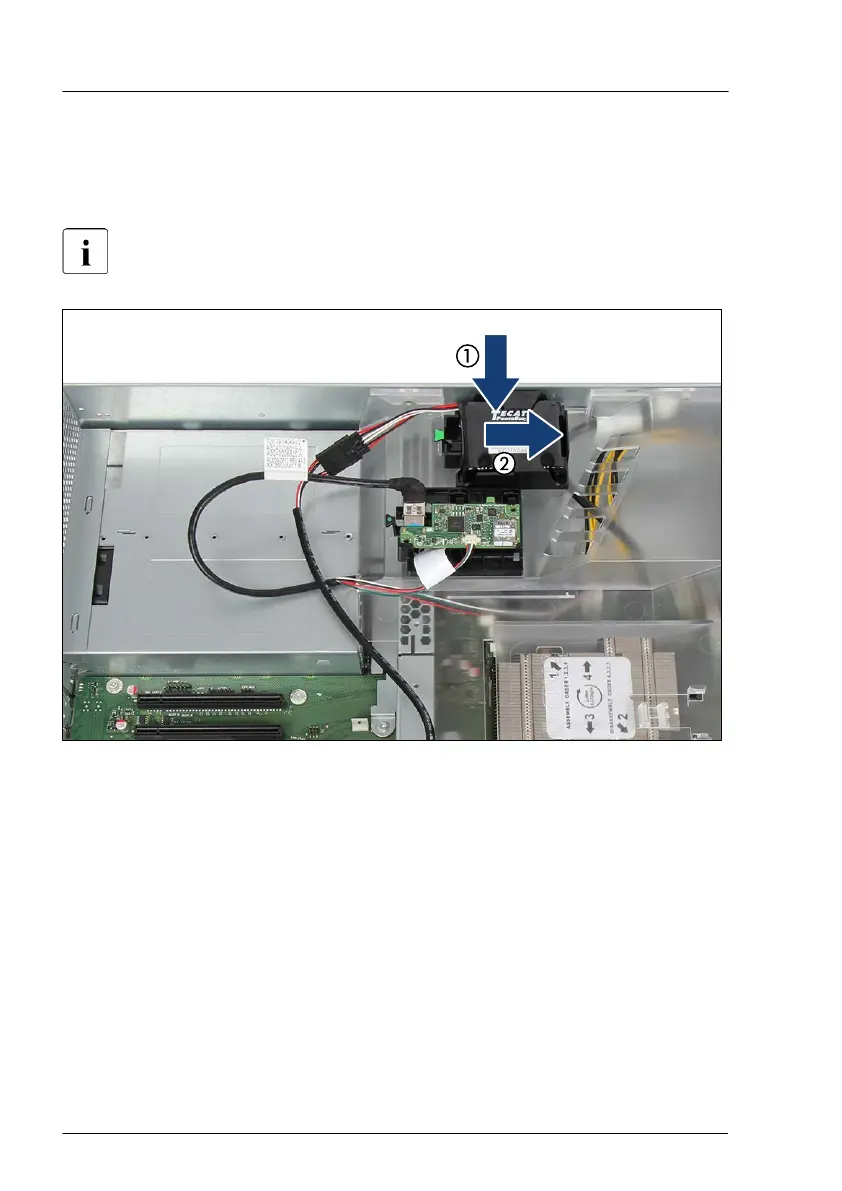

Figure 145: Installing the FBU with the holder
▶
Place the holder on the three shoulder screw caps of the air duct (1).
▶
Push the holder in direction of the arrow until it engages (2).
▶
If applicable, install the TFM and connect the FBU cable, see "Installing a
TFM" on page 240.
Concluding steps
▶
"Reassembling" on page
51
.
▶
"Connecting the power cord" on page 56.
▶
"Switching on the server" on page 57.
Expansion cards and backup units
250 Upgrade and Maintenance Manual RX2520 M5
